Description

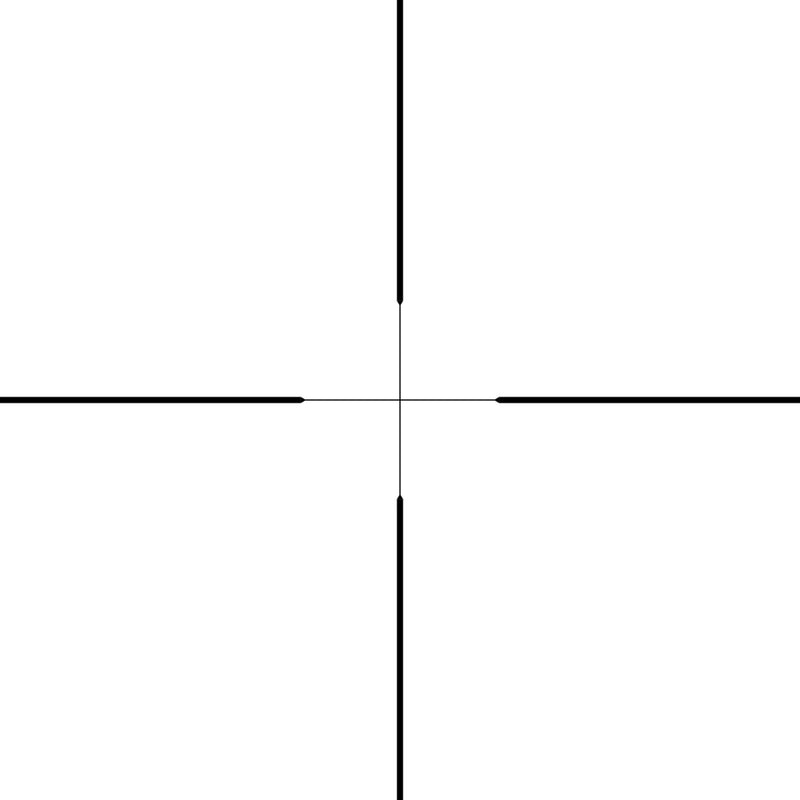

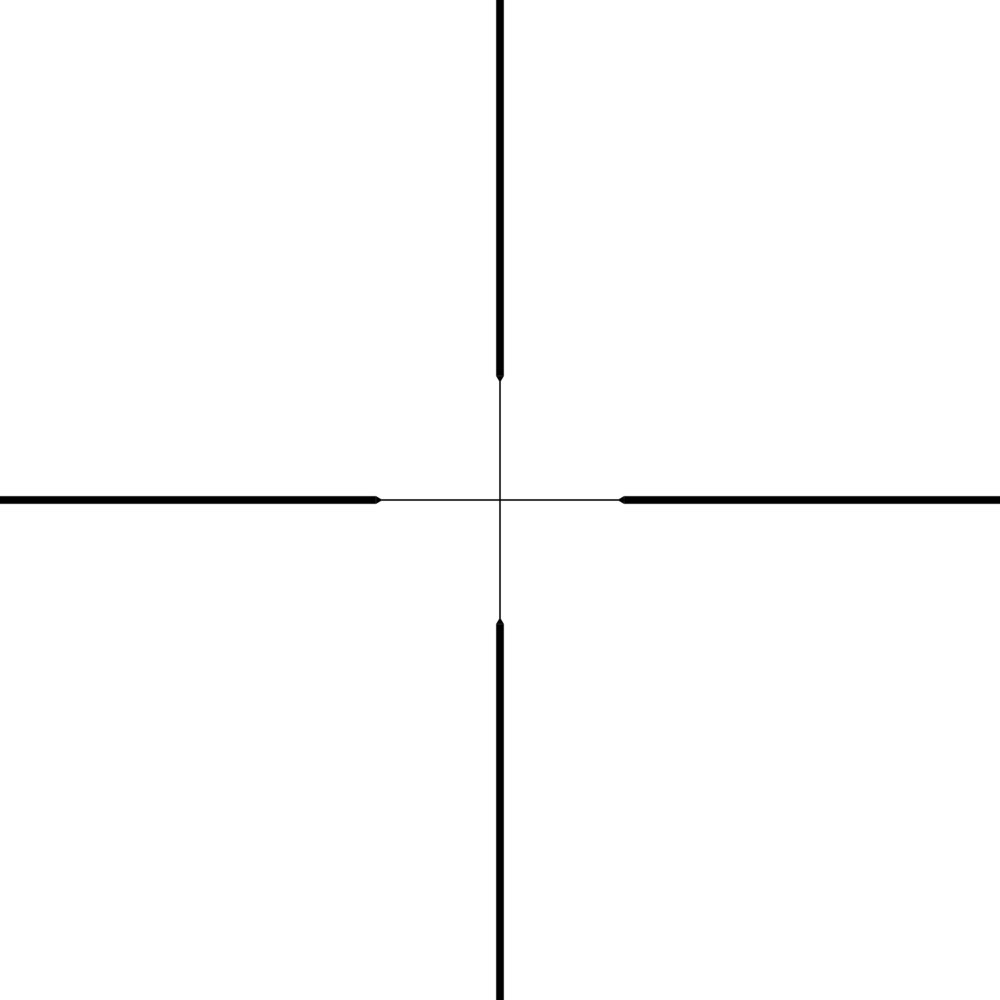

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification.
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
Specs Highlights:
Magnification
3 - 9x
Objective Lens
50mm
Reticle
30/30 Duplex
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
33.6 - 11ft @100yds
Field of View (°)
6.4 - 2.1
Eye Relief
3.5in
Exit Pupil
0.66 - 0.22″

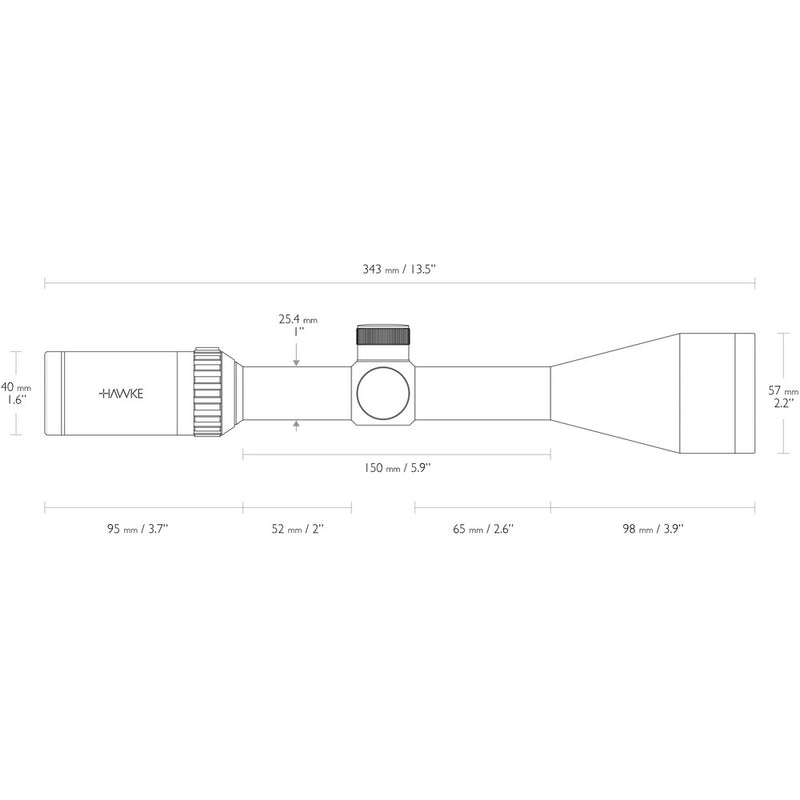

Length
13.5in
Weight
16.6oz
| Scope Tube | 1 Inch |
| Magnification | 3 - 9x |
| Objective Lens | 50mm |
| Reticle | 30/30 Duplex |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 33.6 - 11ft @100yds |
| Field of View (°) | 6.4 - 2.1 |
| Eye Relief | 3.5in |
| PX/Focus | 100yds |
| Click Value | 1⁄ 4MOA |
| Exit Pupil | 0.66 - 0.22″ |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 90 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 90 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 13.5in |
| Weight | 16.6oz |
