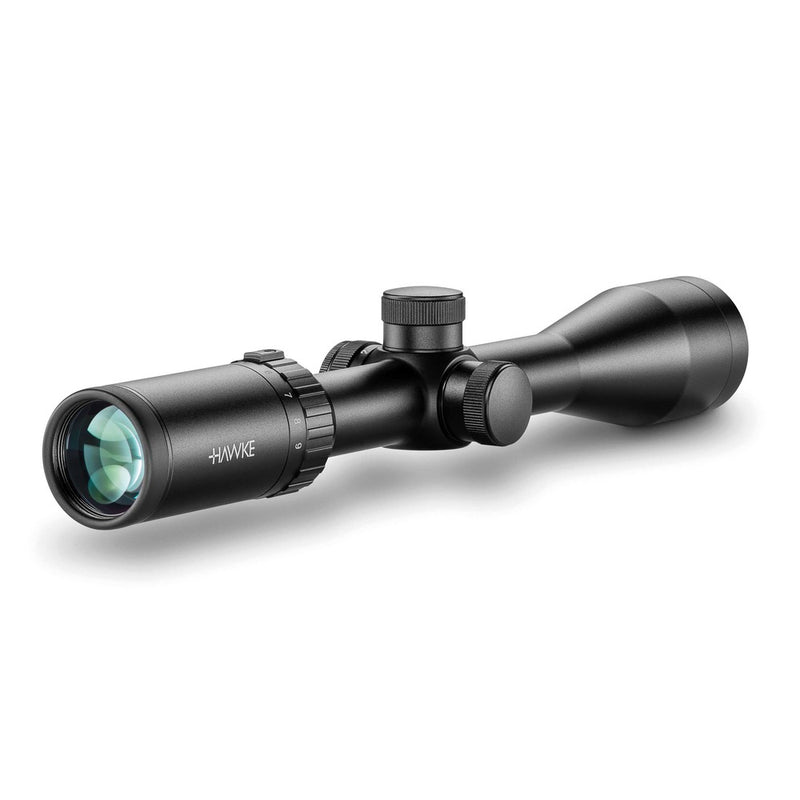

Description

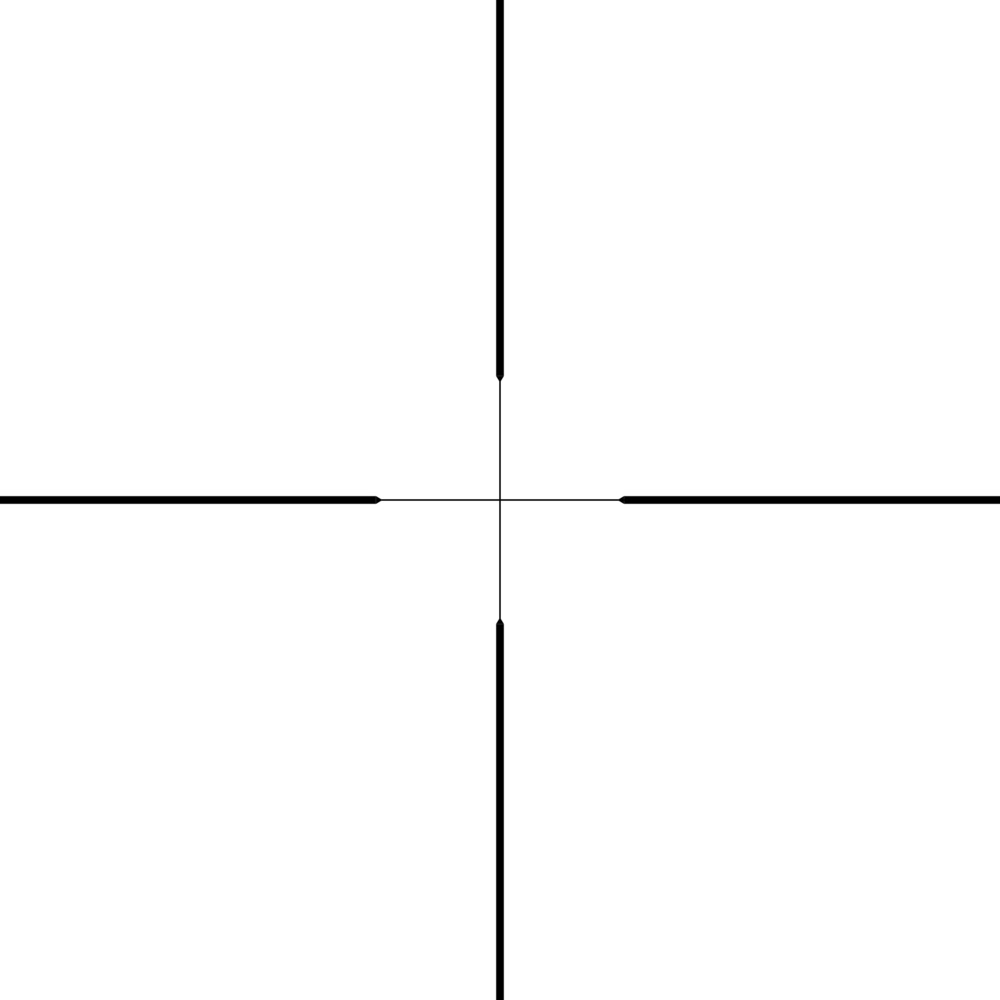

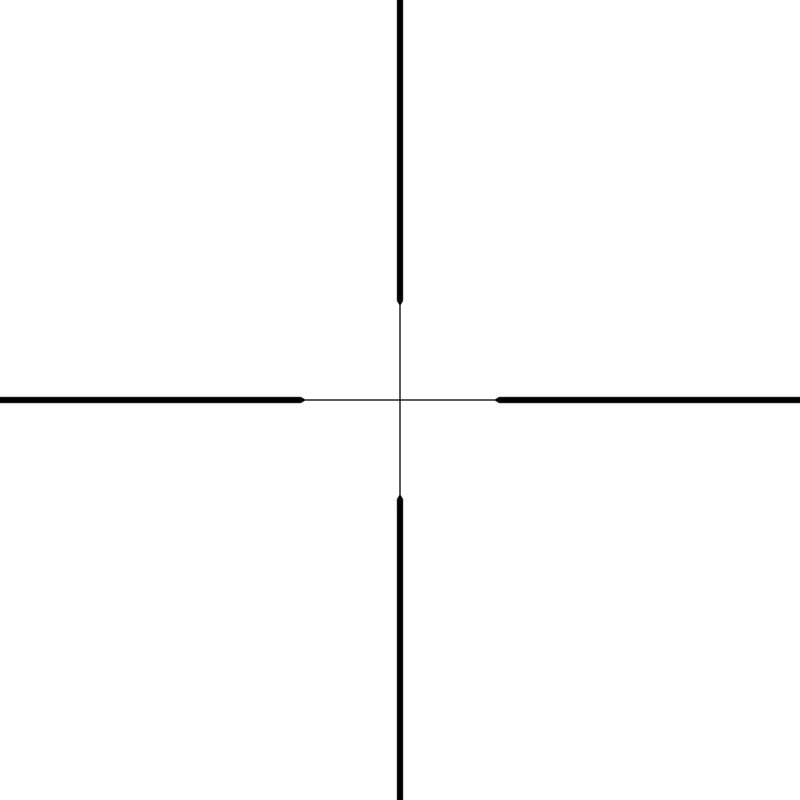

A variant on the classic L4 reticle, the 30/30 Duplex offers 30″ spacing from post to post at 100yds, when on 4x magnification
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
Specs Highlights:
Magnification
3 - 9x
Objective Lens
40mm
Reticle
30/30 Duplex
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
39 - 12.7ft @100yds
Field of View (°)
7.4 - 2.4
Eye Relief
3.5in
Exit Pupil
0.52 - 0.17″

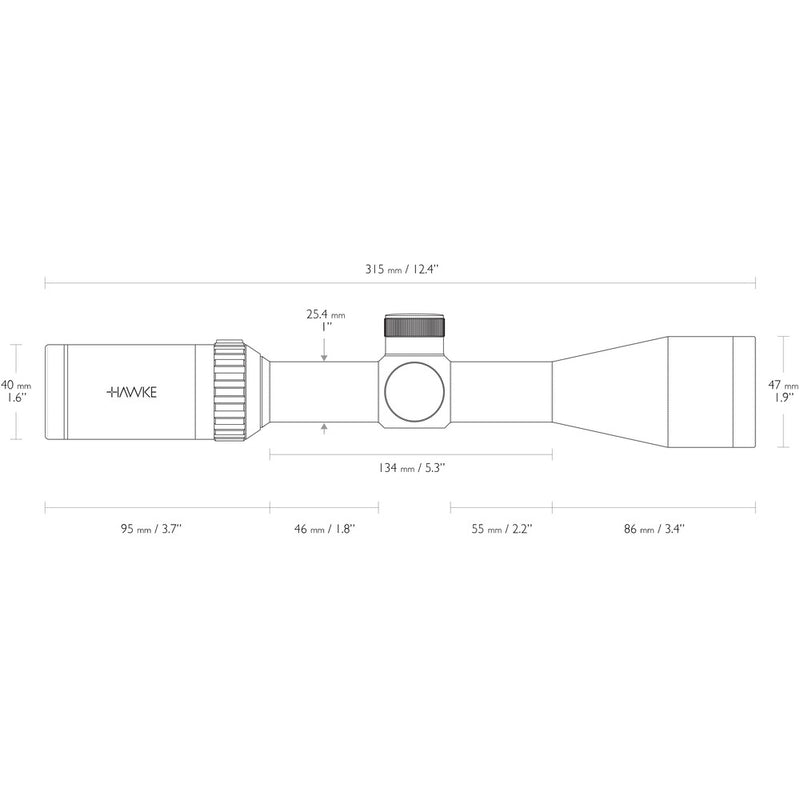

Length
12.4in
Weight
14.2oz
| Scope Tube | 1 Inch |
| Magnification | 3 - 9x |
| Objective Lens | 40mm |
| Reticle | 30/30 Duplex |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 39 - 12.7ft @100yds |
| Field of View (°) | 7.4 - 2.4 |
| Eye Relief | 3.5in |
| PX/Focus | 100yds |
| Click Value | 1⁄ 4MOA |
| Exit Pupil | 0.52 - 0.17″ |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Elevation Turret Clicks (max) | 100 MOA |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 100 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Knurled Posi-Grip |
| Length | 12.4in |
| Weight | 14.2oz |
