Description

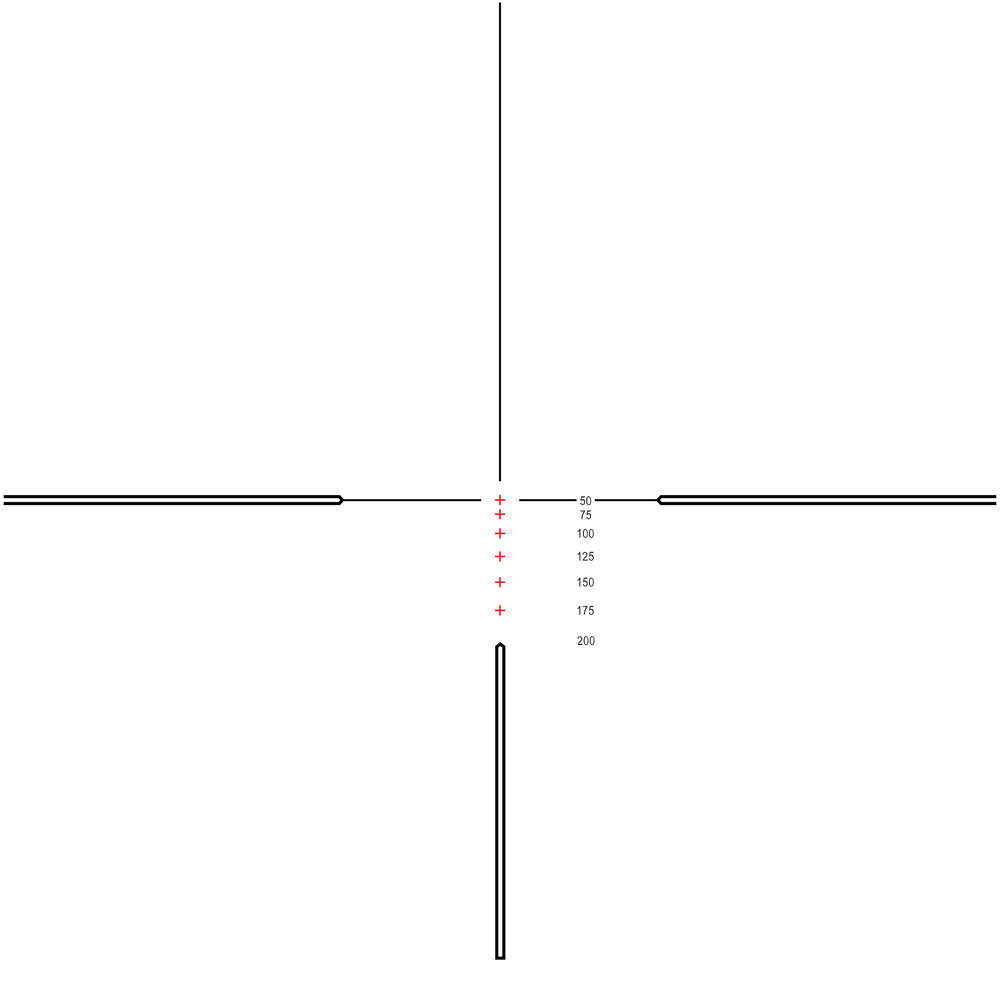

Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for .22 LR High Velocity. Zero on 9x magnification at 50 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 200 yards. Ideal for .22 LR ammunition between 36-40gr and approx. 1235-1260 fps (376-384 m/s). Can also be accurately calibrated for standard velocity and sub-sonic ammunition.
The scope can also be used for 50m zero with aimpoints correct in metric when the magnification is set to 7.8x.
Features
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
| Scope Tube | 1 Inch |
| Magnification | 3 - 9x |
| Objective Lens | 40 mm |
| Reticle | Rimfire .22 LR HV (9x) |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 39 - 12.7ft @100yds |
| Field of View (°) | 7.4 - 2.4 |
| Eye Relief | 3.5in |
| PX/Focus (Error free from) | 75yds |
| Click Value | 1⁄ 4MOA |
| Exit Pupil | 0.52 - 0.17″ |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |

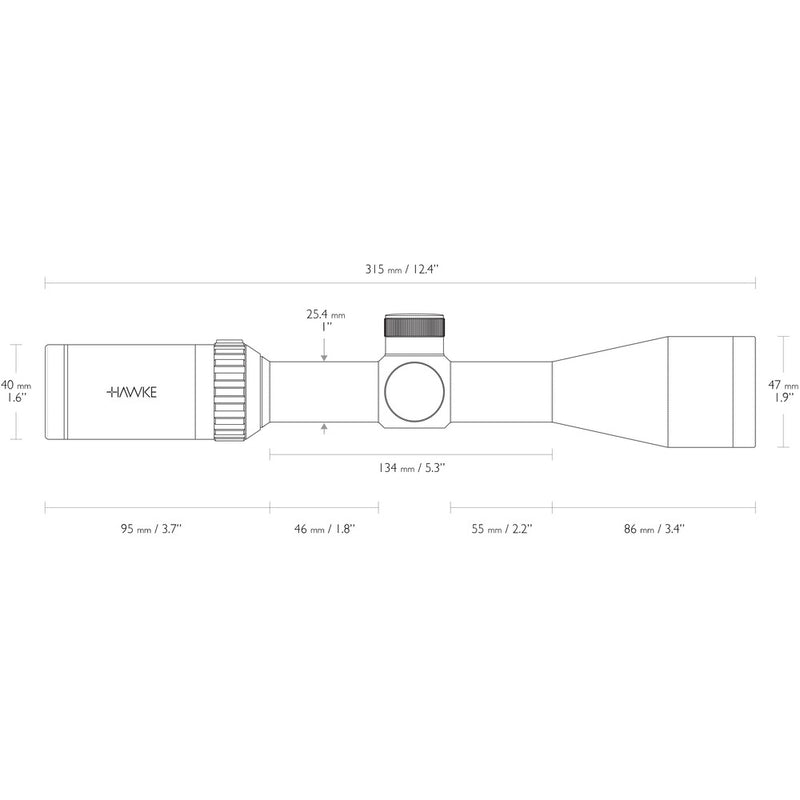

| Length | 12.4in |
| Weight | 15.2oz |
