Description

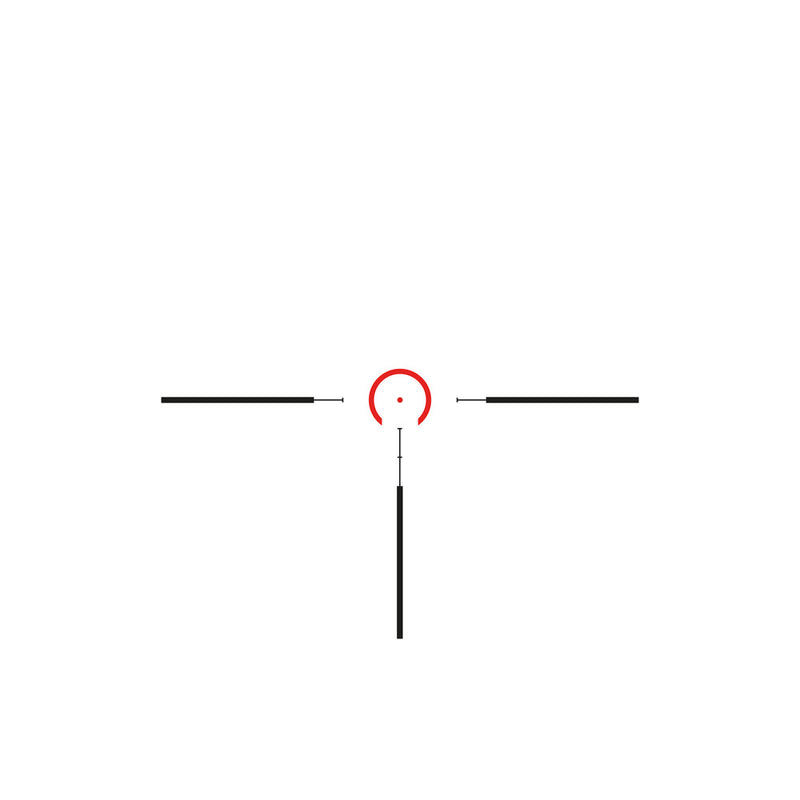

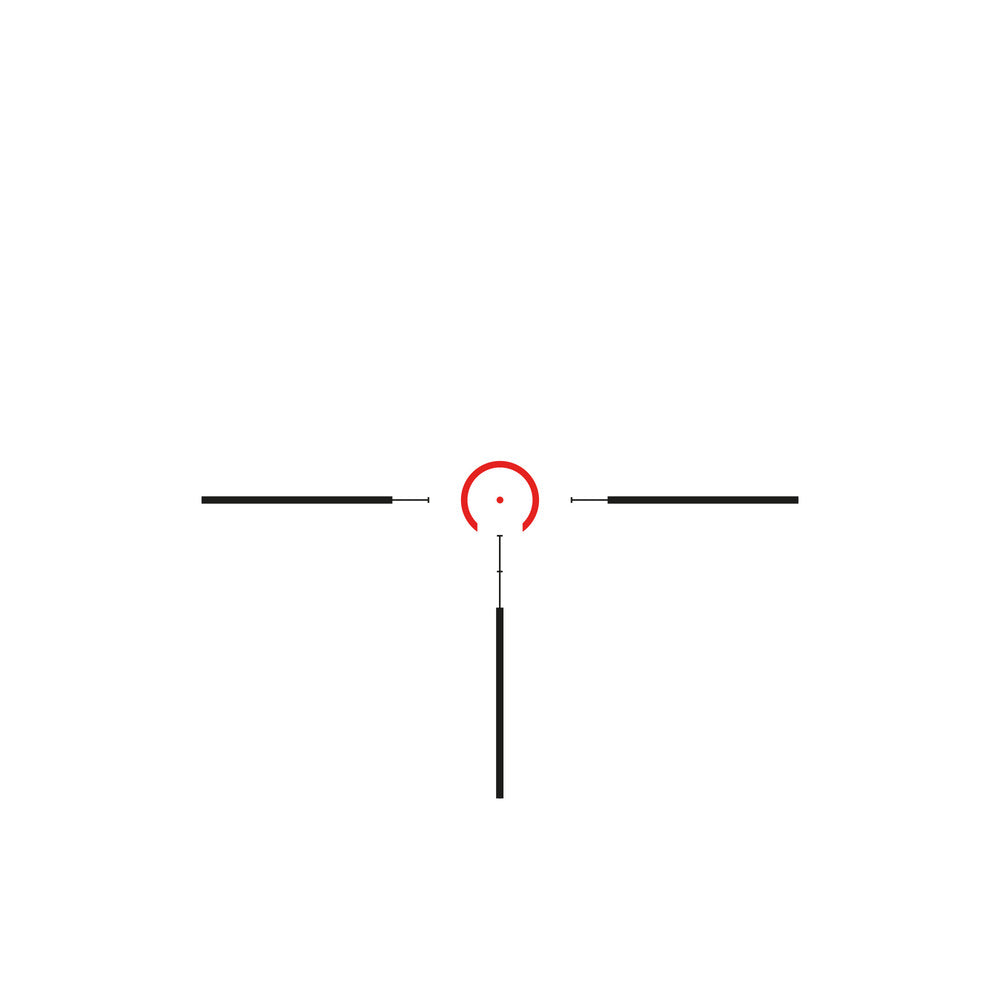

The new Turkey Dot IR reticle offers fast acquisition of your target when every second counts. The 2 MOA illuminated center dot aimpoint is surrounded by a horseshoe that measures 10 inches at 50 yards, when on 4x magnification. Floating posts at 3, 6, and 9 o'clock to aid in rapid target acquisition.
Features
- 4 inch long eye relief
- 1/2 MOA low-profile turrets
- Favorable reticle
- Magnified turkey optic
- All caliber rated
- Red and Green illumination
Specs
Specs Highlights:
Magnification
1 - 4x
Objective Lens
20mm
Reticle
Turkey Dot IR
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
99.3 - 24.8ft @100yds
Field of View (°)
18.8 - 4.7
Exit Pupil
0.79 - 0.2″

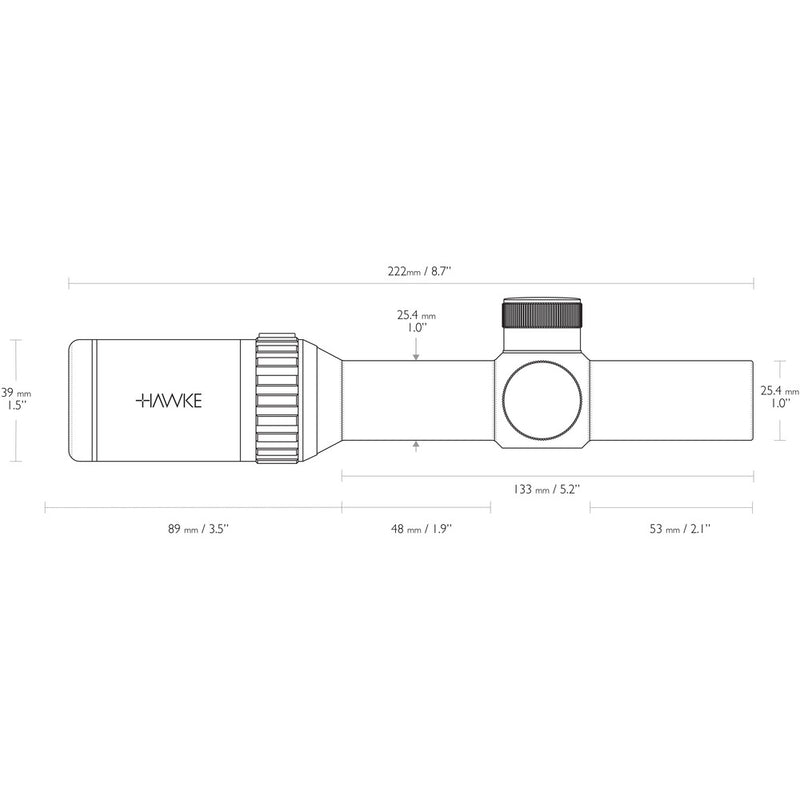

Length
8.7in
Weight
11.7oz
| Scope Tube | 1 Inch |
| Magnification | 1 - 4x |
| Objective Lens | 20mm |
| Reticle | Turkey Dot IR |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 99.3 - 24.8ft @100yds |
| Field of View (°) | 18.8 - 4.7 |
| PX/Focus | 50yds |
| Click Value | 1⁄ 2MOA |
| Exit Pupil | 0.79 - 0.2″ |
| Turret Type (Windage) | Capped, Low-Profile, Resettable |
| Length | 8.7in |
| Weight | 11.7oz |
