Description

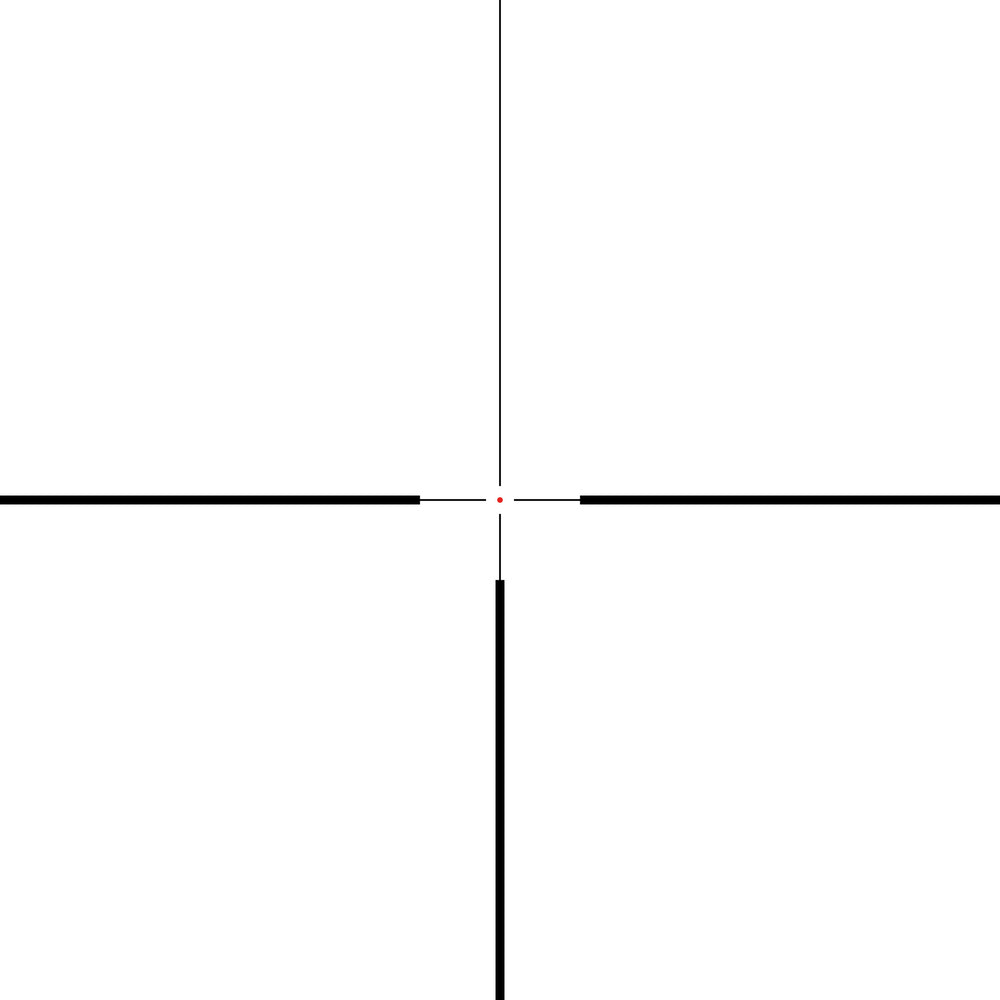

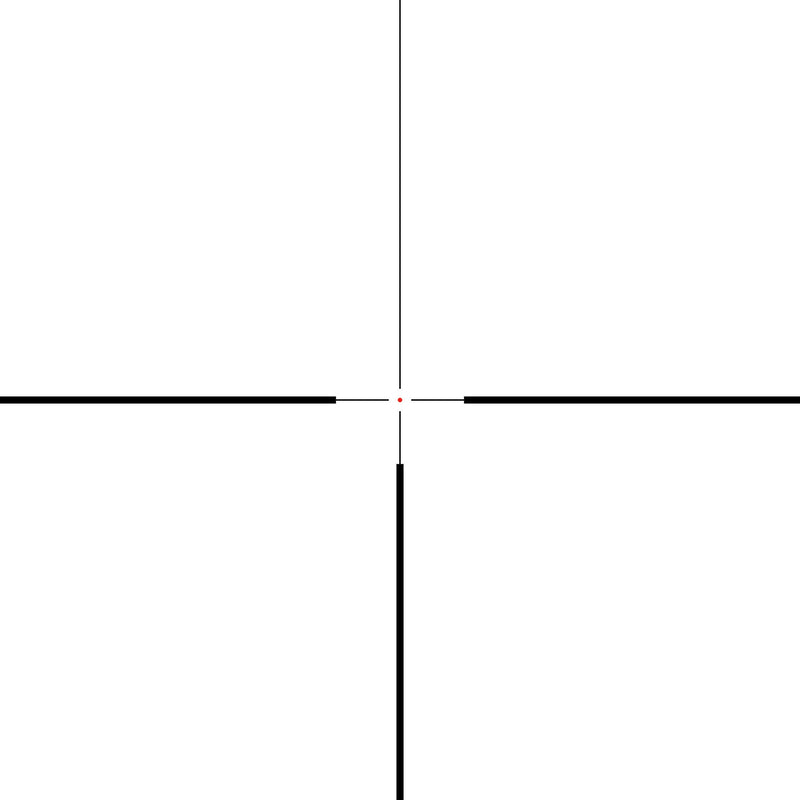

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
Features
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
Specs Highlights:
Magnification
3 - 12x
Objective Lens
56mm
Reticle
L4A Dot (2 MOA)
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
43.8 - 11.4ft @100yds
Field of View (°)
8.4 - 2.2
Eye Relief
3.5in
Exit Pupil
0.74 - 0.19″

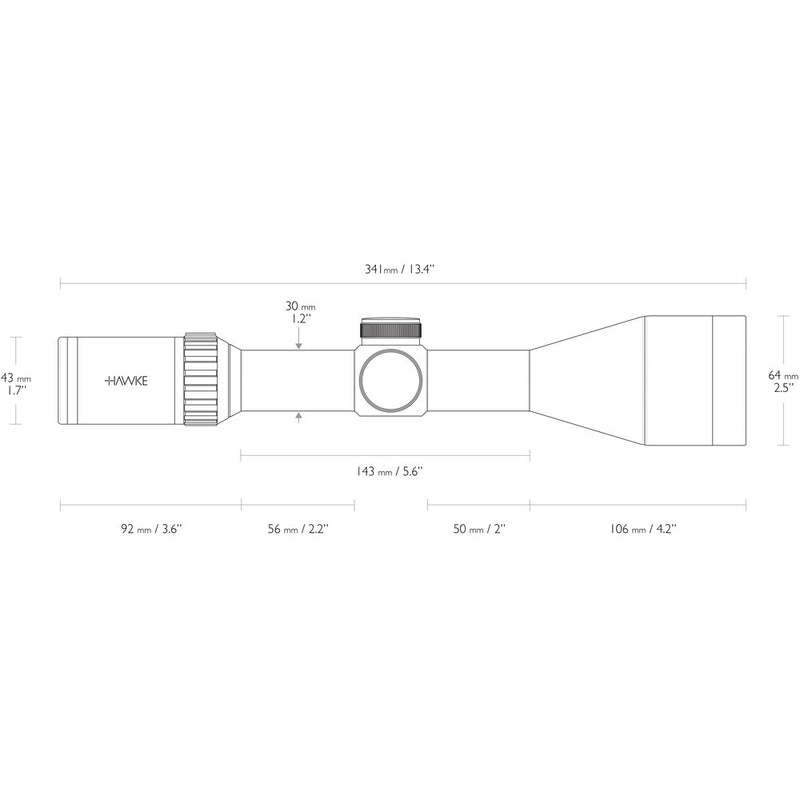

Length
13.4in
Weight
23.6oz
| Scope Tube | 30mm |
| Magnification | 3 - 12x |
| Objective Lens | 56mm |
| Reticle | L4A Dot (2 MOA) |
| Illumination | 5 Levels (Red & Green) |
| Illumination Control | Stepped Rheostat |
| Parallax | Fixed |
| Focal Plane | SFP (Second Focal Plane) |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Optical System | System H2 |
| Field of View | 43.8 - 11.4ft @100yds |
| Field of View (°) | 8.4 - 2.2 |
| Eye Relief | 3.5in |
| PX/Focus | 100yds |
| Click Value | 1⁄ 4MOA |
| Exit Pupil | 0.74 - 0.19″ |
| Turret Type (Elevation) | Capped, Low-Profile, Resettable |
| Windage Turret Clicks (max) | 100 MOA |
| Length | 13.4in |
| Weight | 23.6oz |
