Description

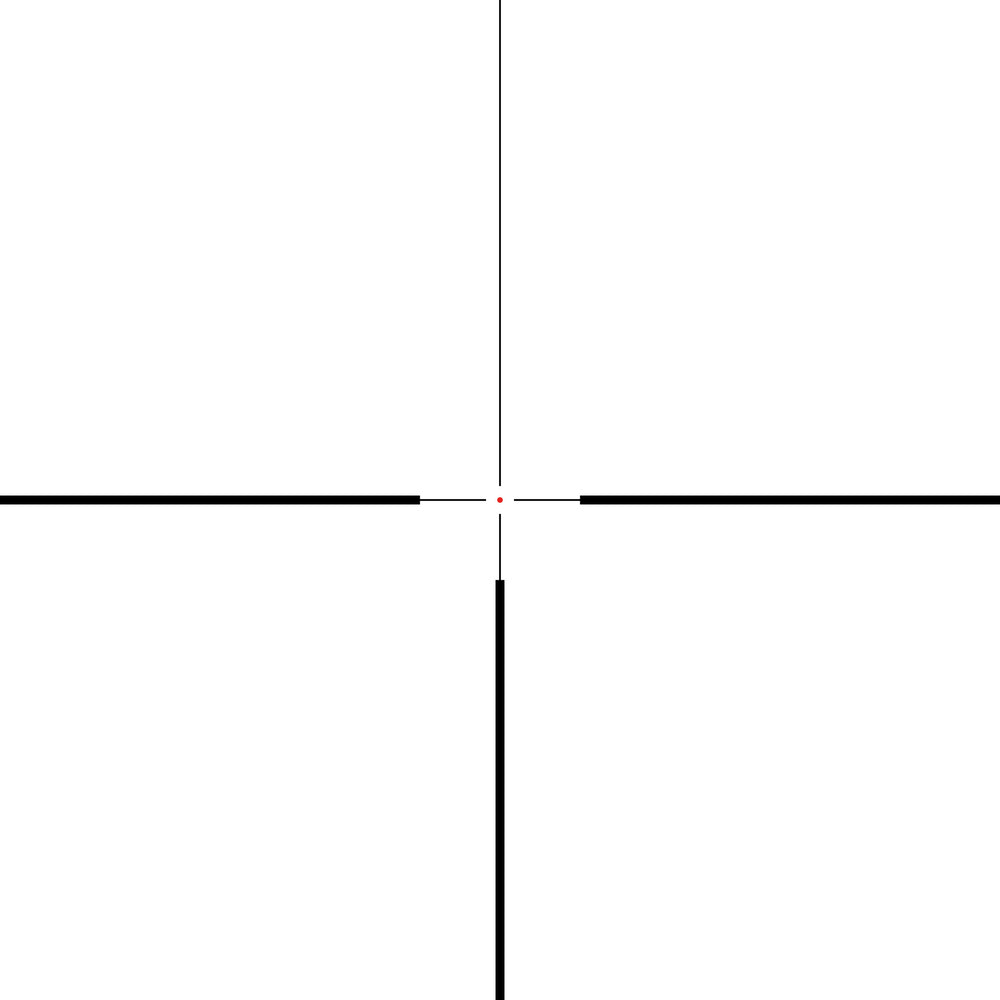

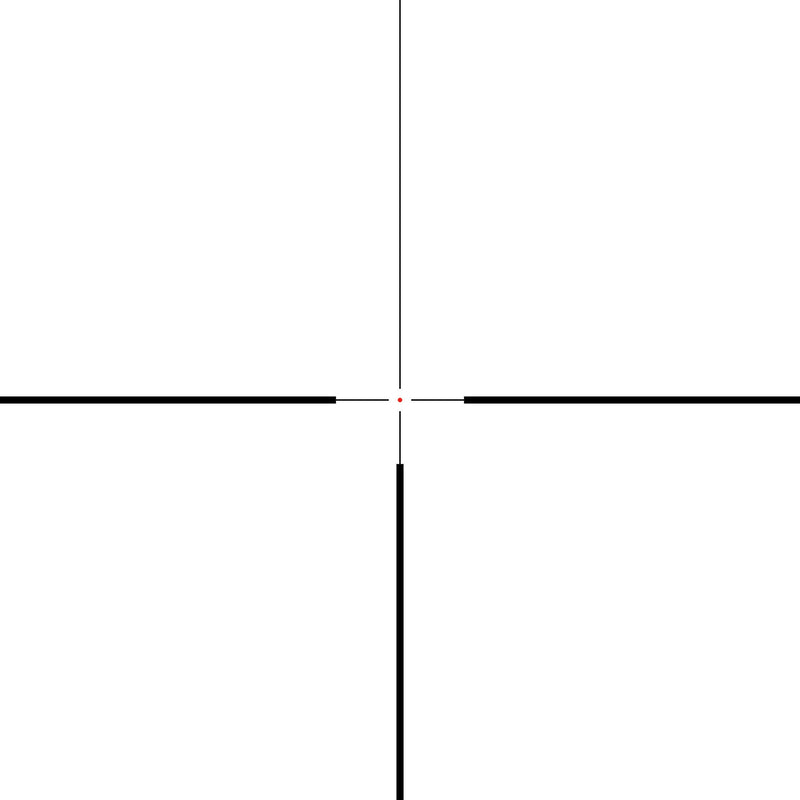

A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.
Features
- Capped Low-Profile Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Illumination
- 11 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
Specs
Specs Highlights:
Magnification
2.5 - 10x
Objective Lens
50mm
Focal Plane
SFP (Second Focal Plane)
Field of View
50.4 - 12.6ft @100yds
Field of View (°)
9.6 - 2.4
Eye Relief
3.5in
Exit Pupil
0.79 - 0.2″
Length
12.9in
Weight
21.2oz
Parallax
Fixed
| Scope Tube | 30mm |
| Magnification | 2.5 - 10x |
| Objective Lens | 50mm |
| L4A Dot (2 MOA) | L4A Dot (2 MOA) |
| Illumination | 5 Levels (Red & Green) |
| Focal Plane | SFP (Second Focal Plane) |
| Field of View | 50.4 - 12.6ft @100yds |
| Field of View (°) | 9.6 - 2.4 |
| Eye Relief | 3.5in |
| PX/Focus | 100yds |
| Click Value | 1⁄ 4MOA91m |
| Exit Pupil | 0.79 - 0.2″ |
| Length | 12.9in |
| Weight | 21.2oz |
| Parallax | Fixed |
| Elevation Turret Clicks (max) | 100 MOA |
| Ocular Type | Fast Focus |
