Description

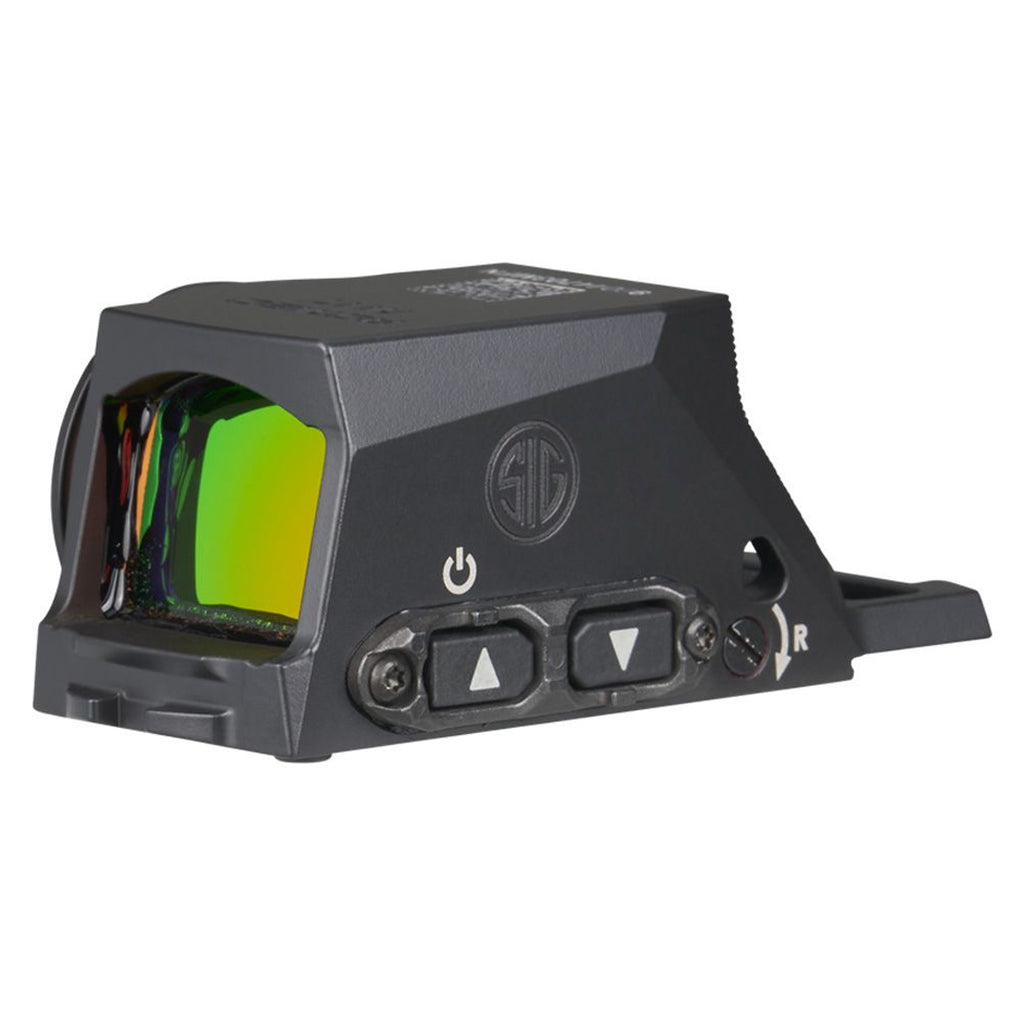

The M17 and M18 pistols have been selected by the US Military as the official sidearm, and the ROMEO-M17 is the only optic that is truly designed specifically for this pistol. All other optics have many disadvantages and make several compromises. The ROMEO-M17 does not. This is an American-built MIL-SPEC red dot truly worthy of the SIG SAUER name.
*Please Note - The ROMEO-M17 pistol red dot sight utilizes SIG SAUER'S proprietary SIG-LOC mounting interface and only fits SIG SAUER M17/M18 military issue, and commemorative pistols with a single optics plate mounting screw. This sight will not fit any other pistols.
Features

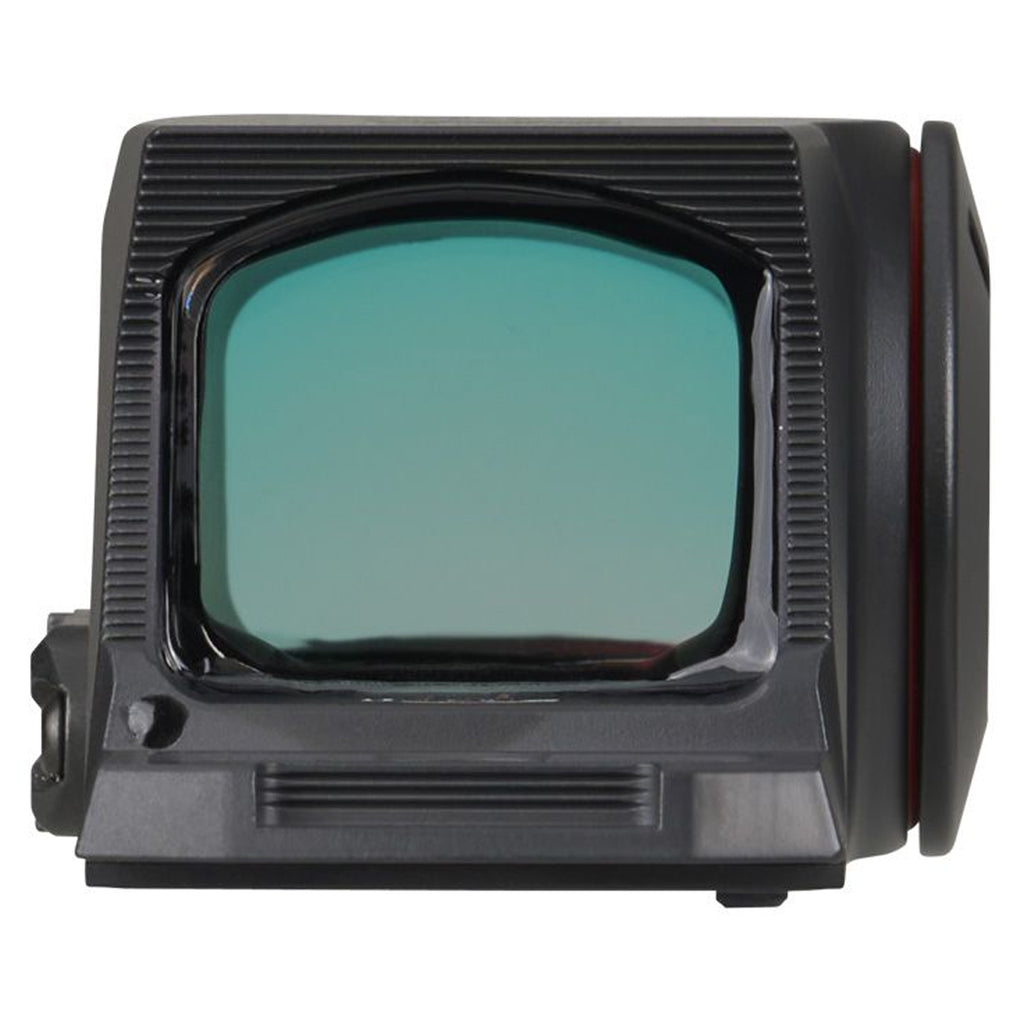

- A fully enclosed, sealed, and purged optical system, for ultimate protection from the elements
- Mounts from underneath the pistol slide, re-using the MHS pistol rear sight block and sight block screw
- 7075 Aluminum housing
- Integrated gas deflector on the front of the housing
- Machined anti-reflection grooves on all rear surfaces for reduced glare
- Extremely low deck height, allowing a full sight picture and co-witness with standard-height sights
- SIG-LOC™ (SIG Leverage Optimizing Connection) proprietary mounting interface, for the ultimate optic/pistol lockup.
- A high-efficiency point source LED emitter, with 2 MOA dot/32 MOA circle reticle. The reticles are independently selectable (circle only, dot only, or circle/dot combination).

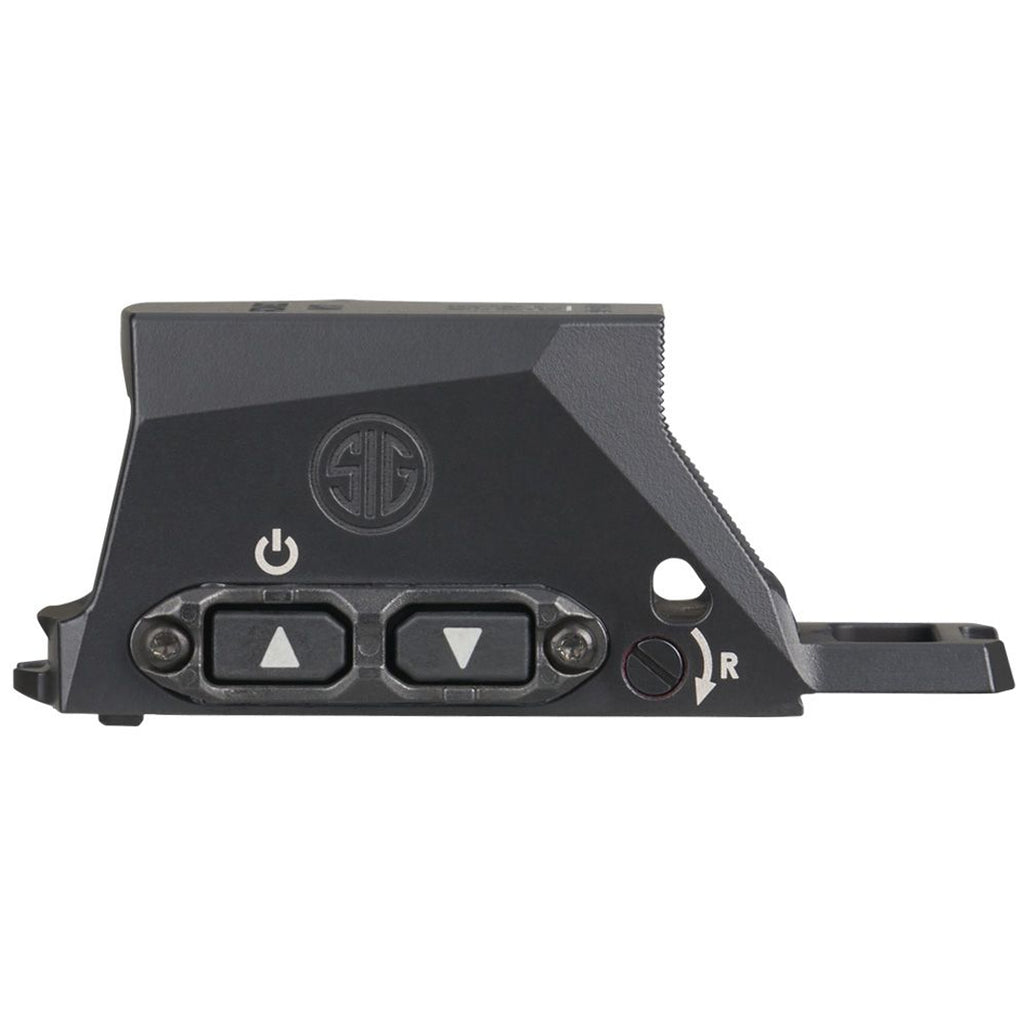

- Independent brightness adjustment buttons that are recessed within a protective plate which can be activated even with gloves on. Buttons have bump features above UP and below DOWN, so they can be determined by feel.
- 15 brightness settings, with 3 of the settings optimized for use with Gen 3+ NV devices

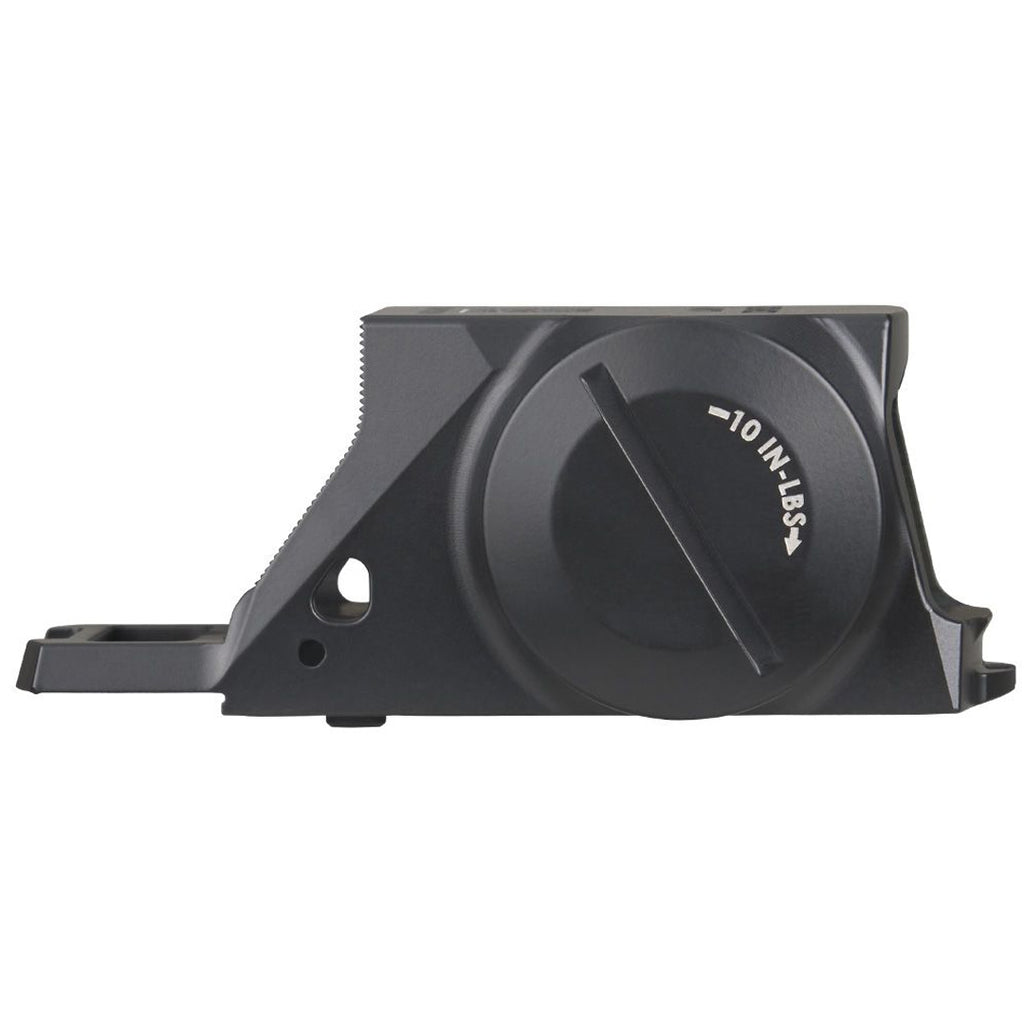

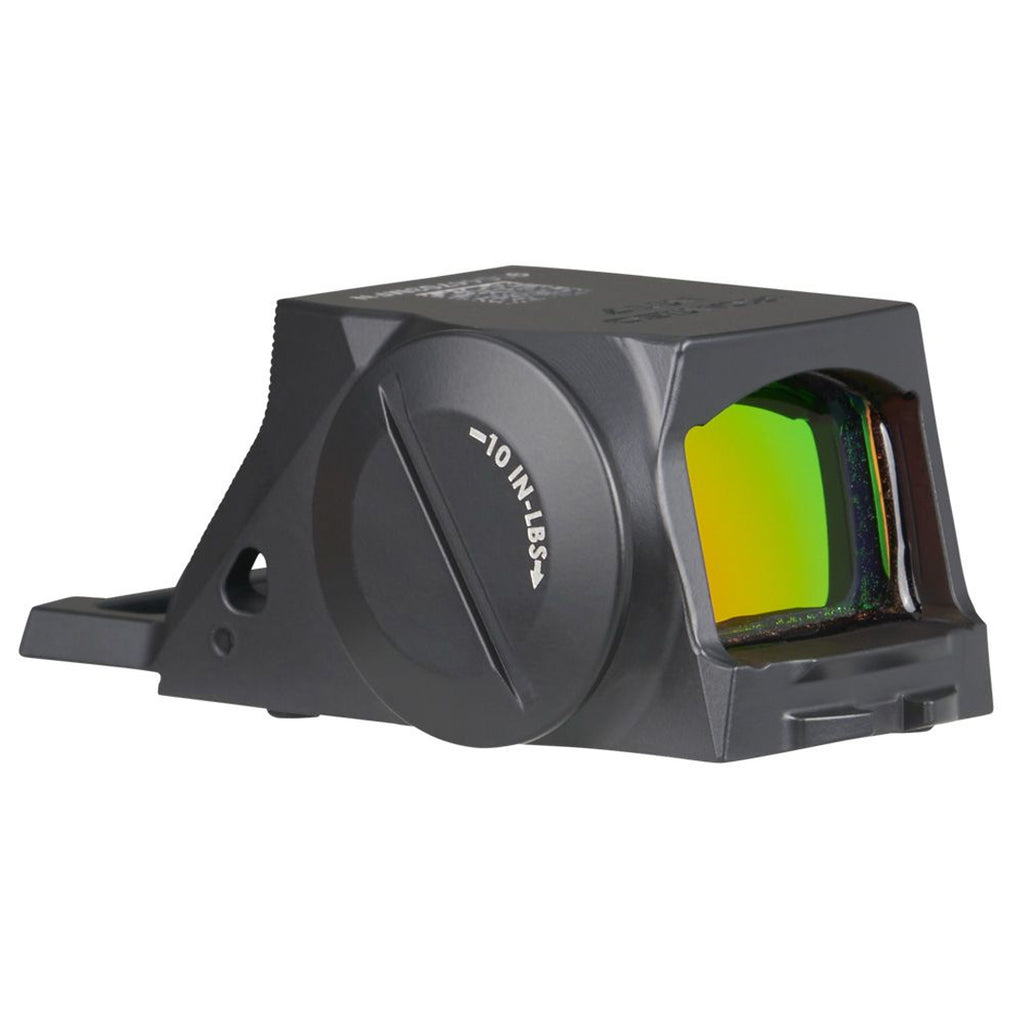

- A side-mounted CR2032 battery compartment with a threaded battery cap, for easy battery changes without the need to remove the optic from the firearm.
- Minimum continuous runtime of 50,000 hours, at medium brightness setting
- 2 drainage holes machined in the sides of the housing, just behind the rear sealed window, to allow pooled liquid to escape when the optic goes from a vertical position (such as in a holster) to a horizontal position (such as shooting)
- Windage and elevation adjustments have tactile clicks. Adjustment screws are slotted, for use with any small flat-blade tool. Adjustment resolution is 1.5 MOA per click.
- MOTAC (Motion Activated Illumination)
- MAGNETAC (Magnetic Activation)
- D.A.R.C. (Dark Adaptive Reticles & Coatings)

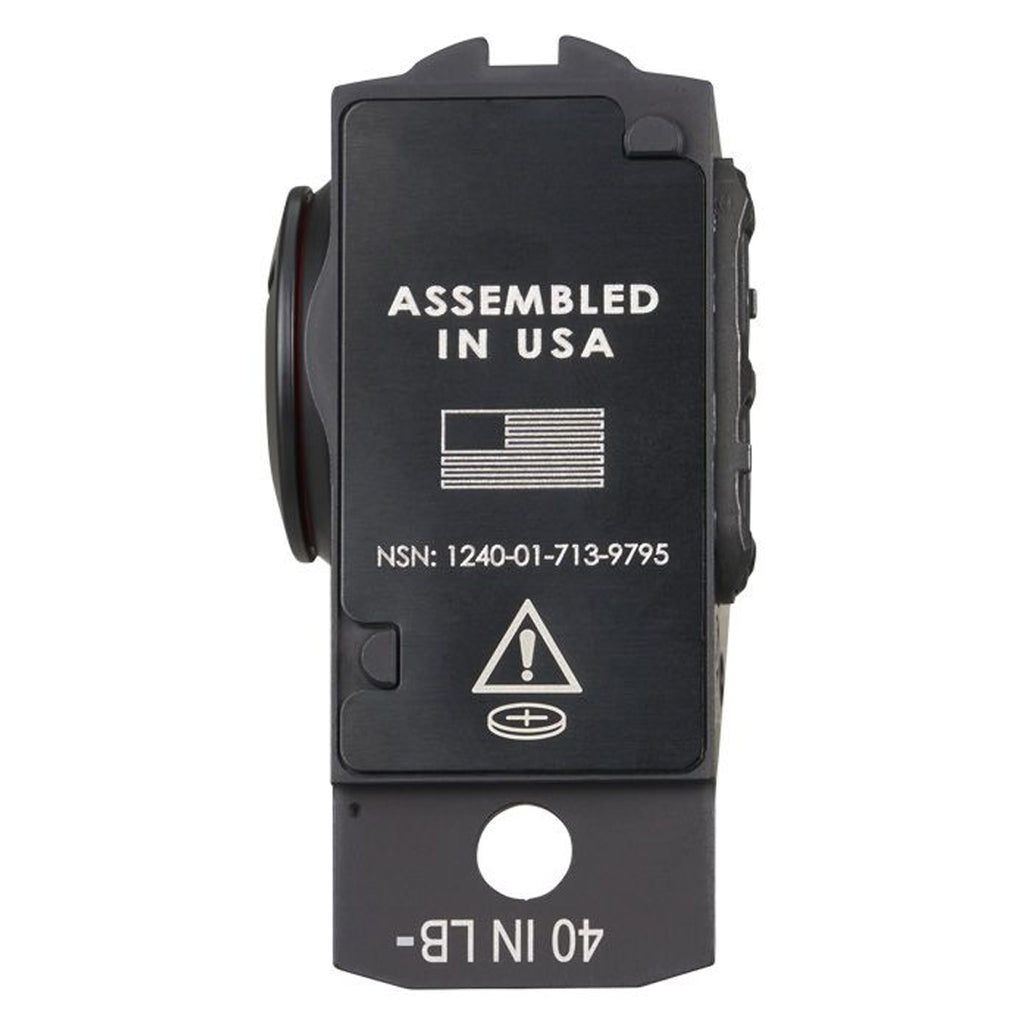

- Designed, developed, tested and fully assembled in the USA
Specs
Specs Highlights:
Height
1.1 in
Magnification
1x
Reticle
Red Circle Dot
| RX Footprint | SIG-LOC (M17/M18 MHS & Commem.) |
| Height | 1.1 in |
| Magnification | 1x |
| Objective Lens Diameter | 24 mm |
| Overall Length | 2.4 in |
| Overall Width | 0.9 in |
| Illumination Settings | 12 Daytime 3 Night Vision |
| Total Elevation Travel | 40 MOA |
| Total Windage Travel | 80 MOA |
| Run Time | Up to 50,000 (Dot Only) |
| Battery | (1) CR2032 |
| Reticle | Red Circle Dot |
| Emitter | Enclosed |
