Description

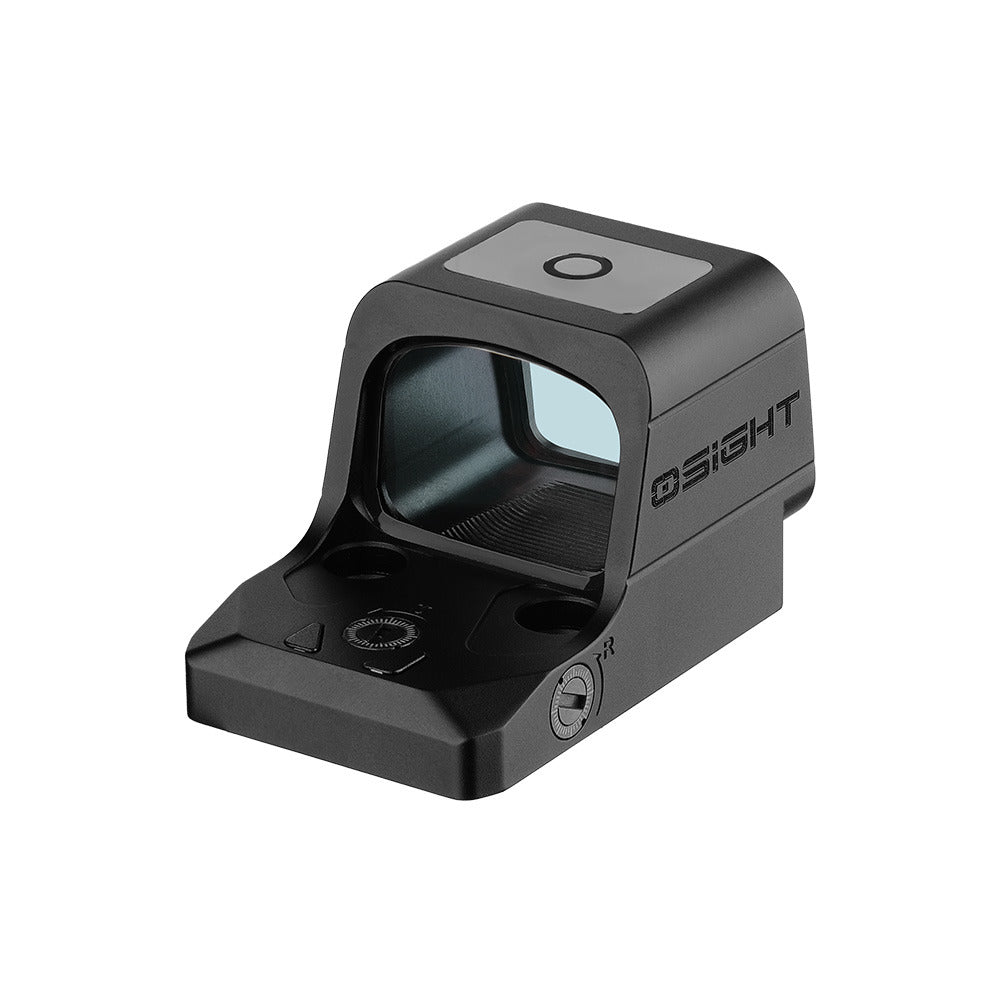

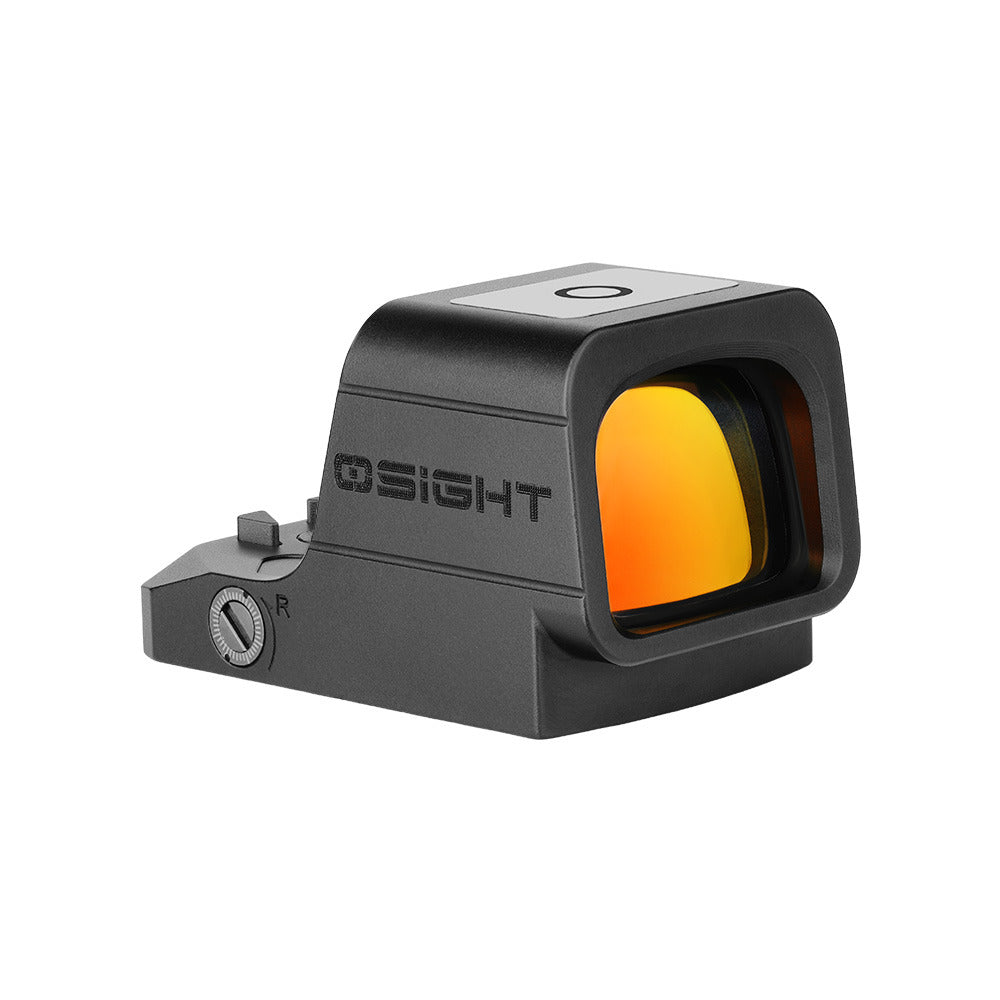

The Osight XR is a rugged enclosed‑emitter red dot sight built on the Ruggedized Miniature Reflex (RMR‑style) footprint, engineered for shooters who need maximum durability, clarity, and reticle versatility. Its 2 MOA, 6 MOA, and 32 MOA circle options—plus combined circle‑dot modes—provide a flexible multi‑reticle system that adapts instantly to precision aiming, rapid‑acquisition shooting, or dynamic defensive use.
The fully enclosed housing protects the emitter from dust, moisture, and debris, ensuring consistent performance in harsh environments and high‑round‑count training. An advanced aspherical lens delivers a crisp, distortion‑free sight picture with excellent edge‑to‑edge clarity, while the compact profile maintains optimal sight height for modern optics‑ready pistols and carbines.

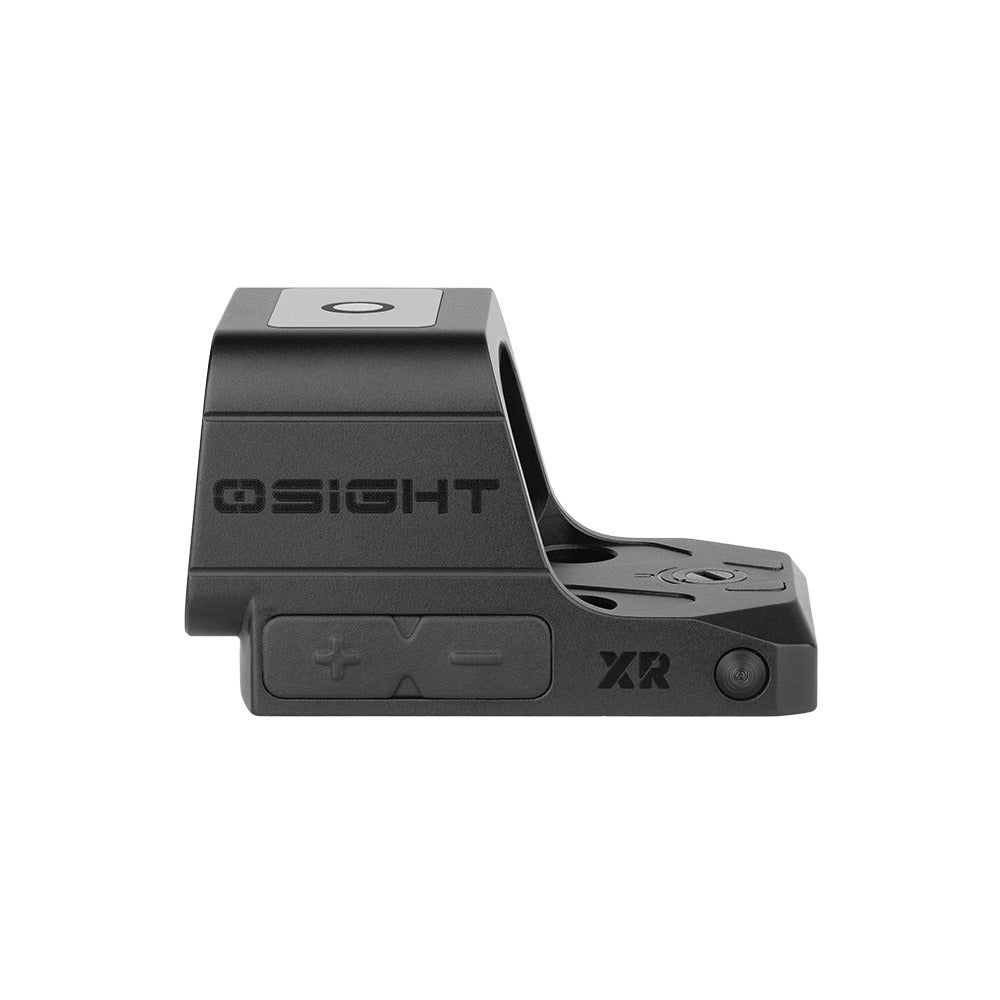

Designed for duty‑grade reliability, the Osight XR offers intuitive brightness controls, dependable zero retention, and a robust mounting interface that integrates seamlessly with RMR‑pattern platforms. It’s an ideal choice for shooters who demand a tough, adaptable, and high‑clarity enclosed red dot sight.
Features

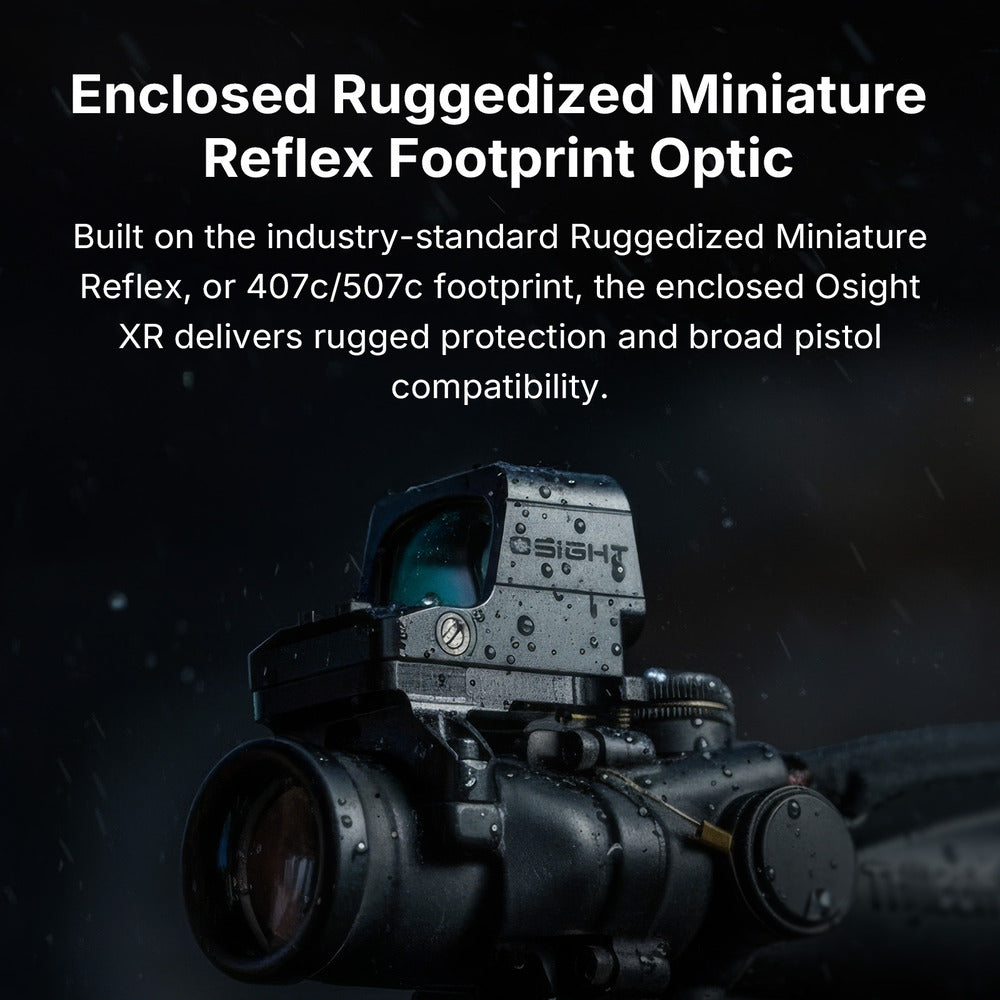

- Enclosed Emitter Optic with Ruggedized Miniature Reflex Footprint: Built on the industry-standard Ruggedized Miniature Reflex footprint, the enclosed Osight XR offers rugged environmental protection and broad seamless full-size and compact pistol compatibility.

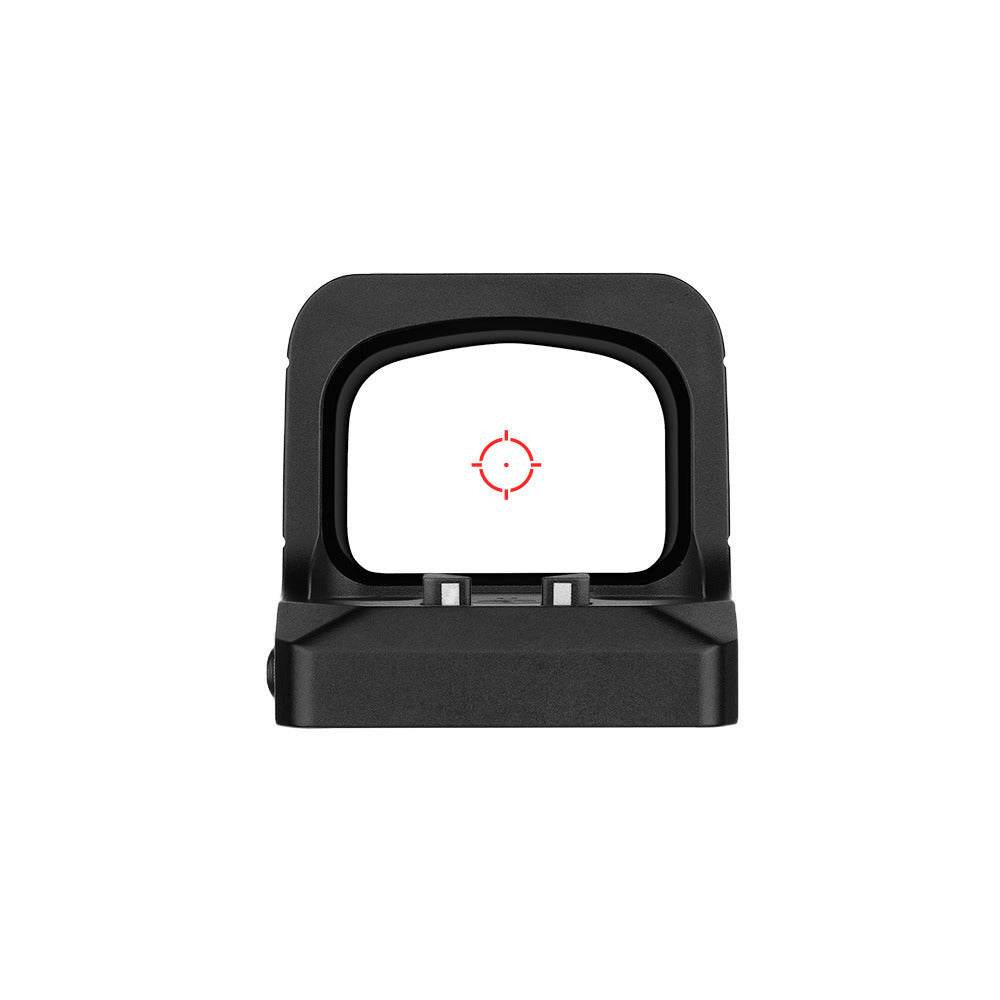

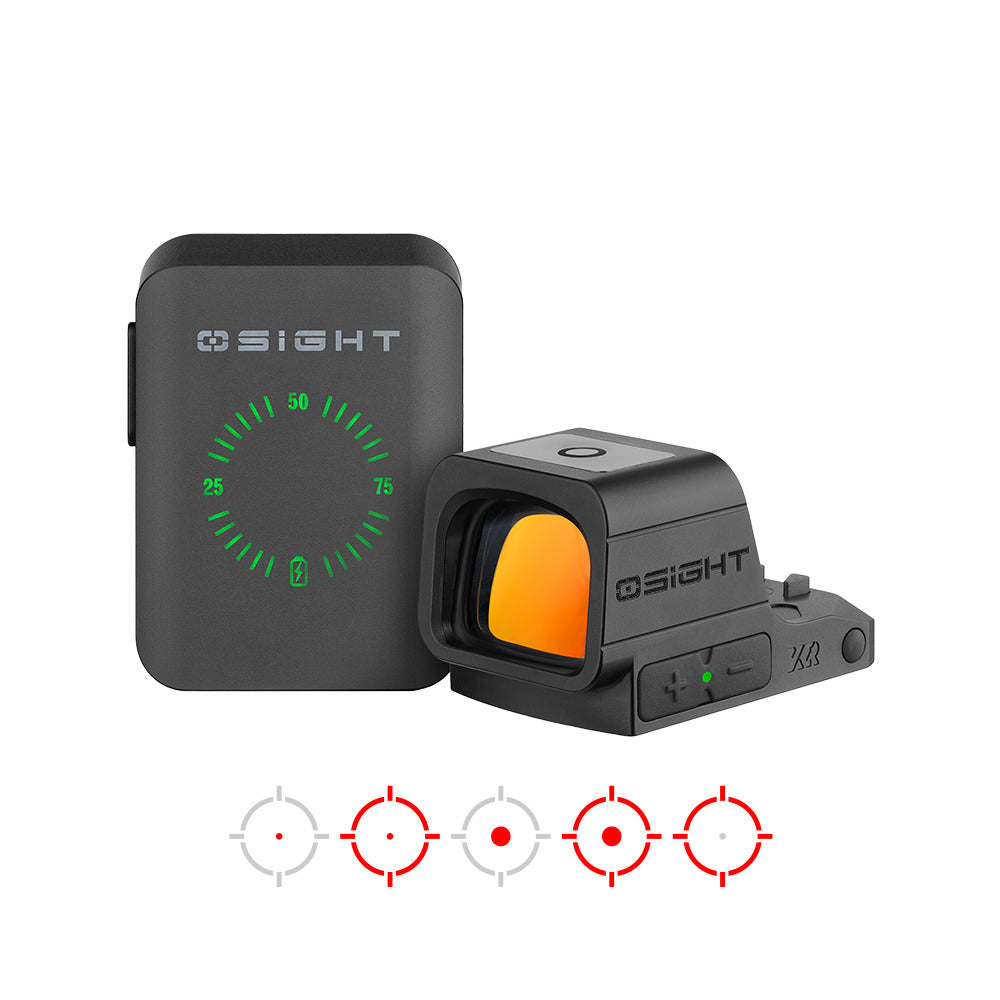

- Industryʼs First 2/6+32 MOA Multi-Reticle System: Switching between a 2 MOA dot, 2 MOA dot + 32 MOA circle, 6 MOA dot, 6 MOA dot + 32 MOA circle, and 32 MOA circle — you can tailor your aiming solution to any shooting scenario.

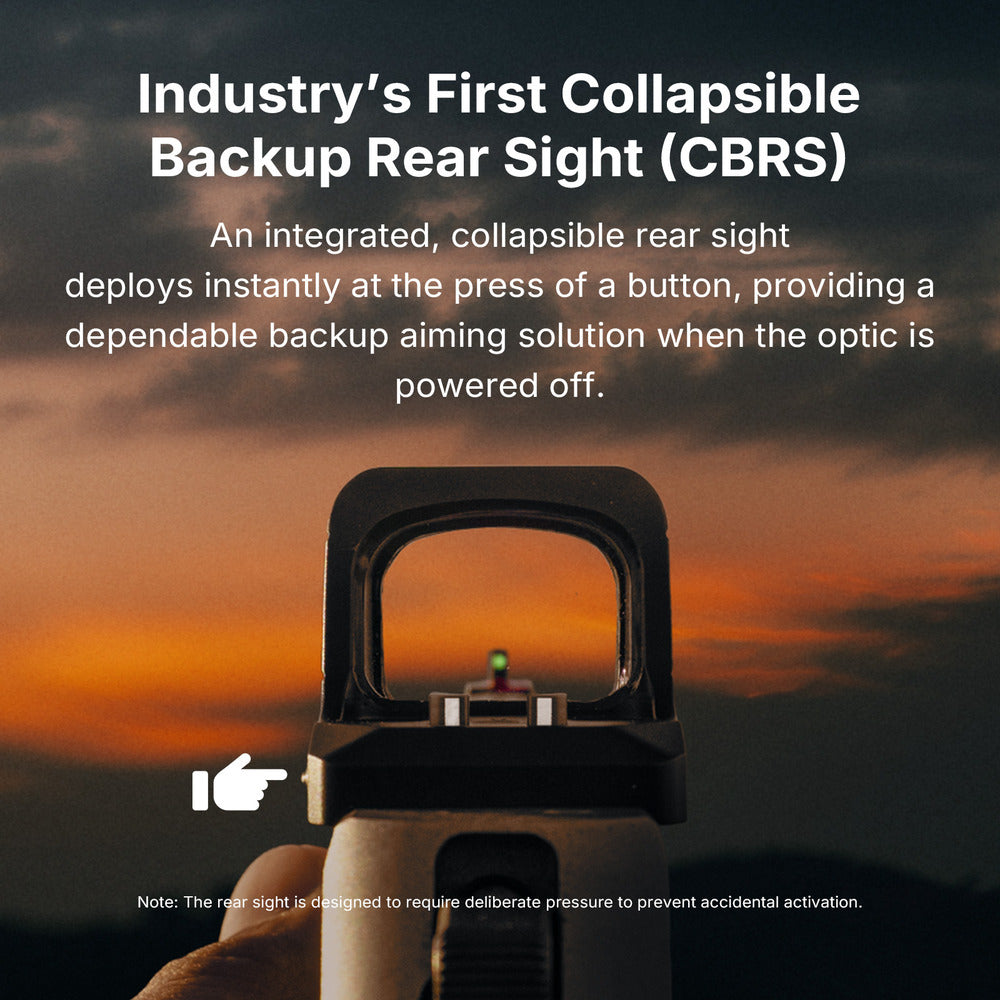

- Industryʼs First Collapsible Backup Rear Sight (CBRS): The integrated, collapsible rear sight serves as a reliable alternative in case the optic is powered off. With a quick press of the pop-up button, you can have a backup sighting system that ensures you can maintain your accuracy and continue shooting effectively.

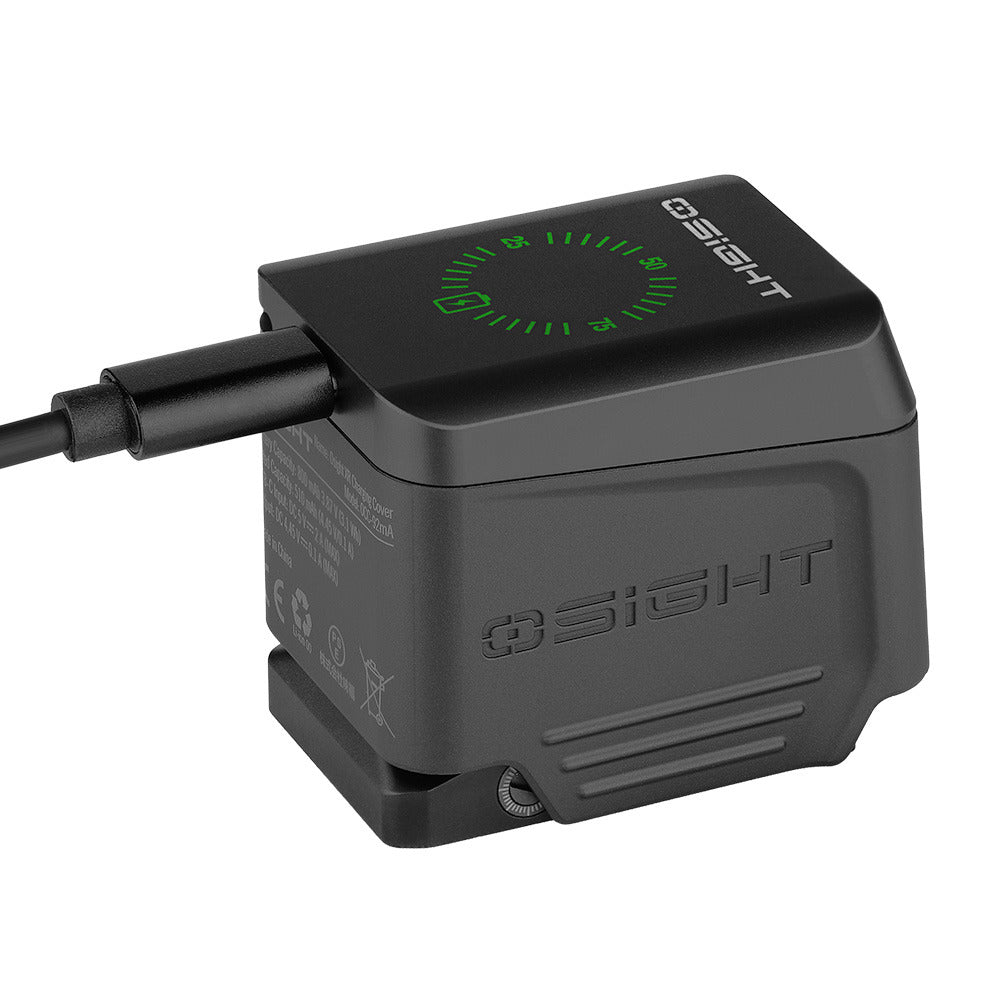

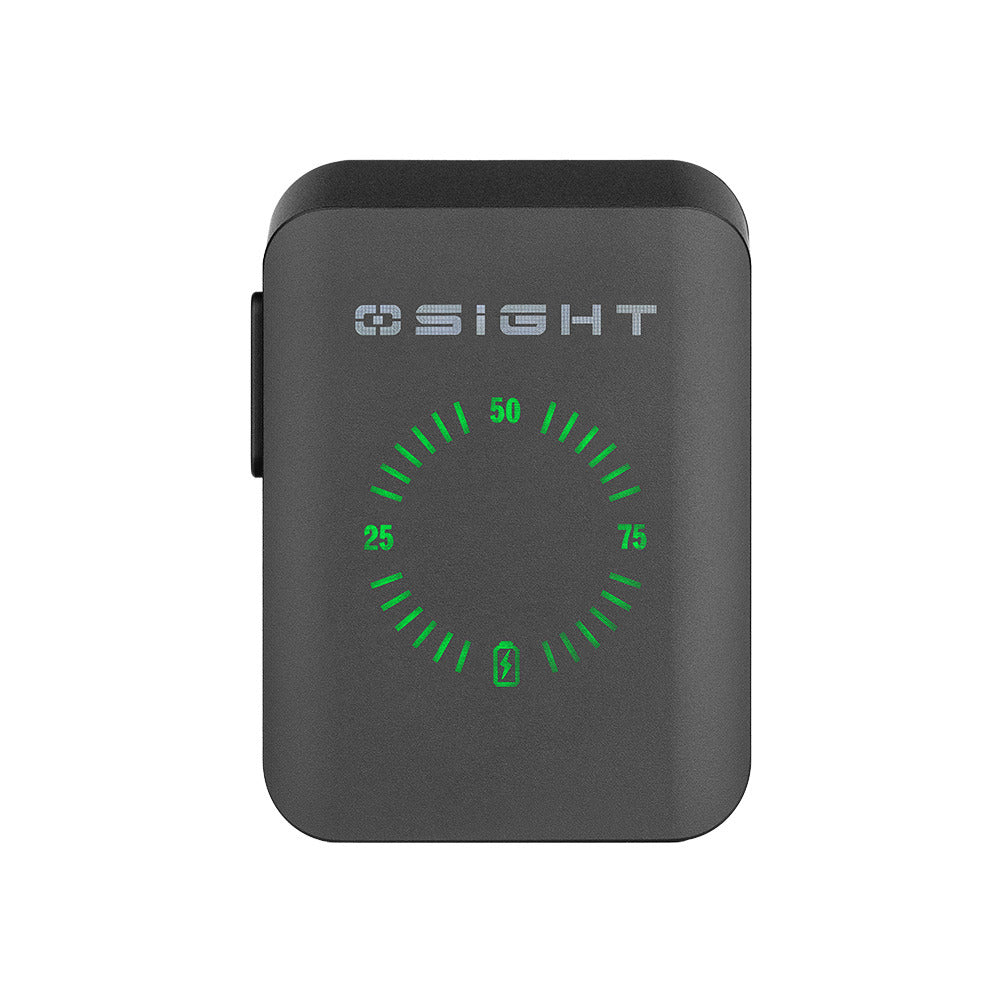

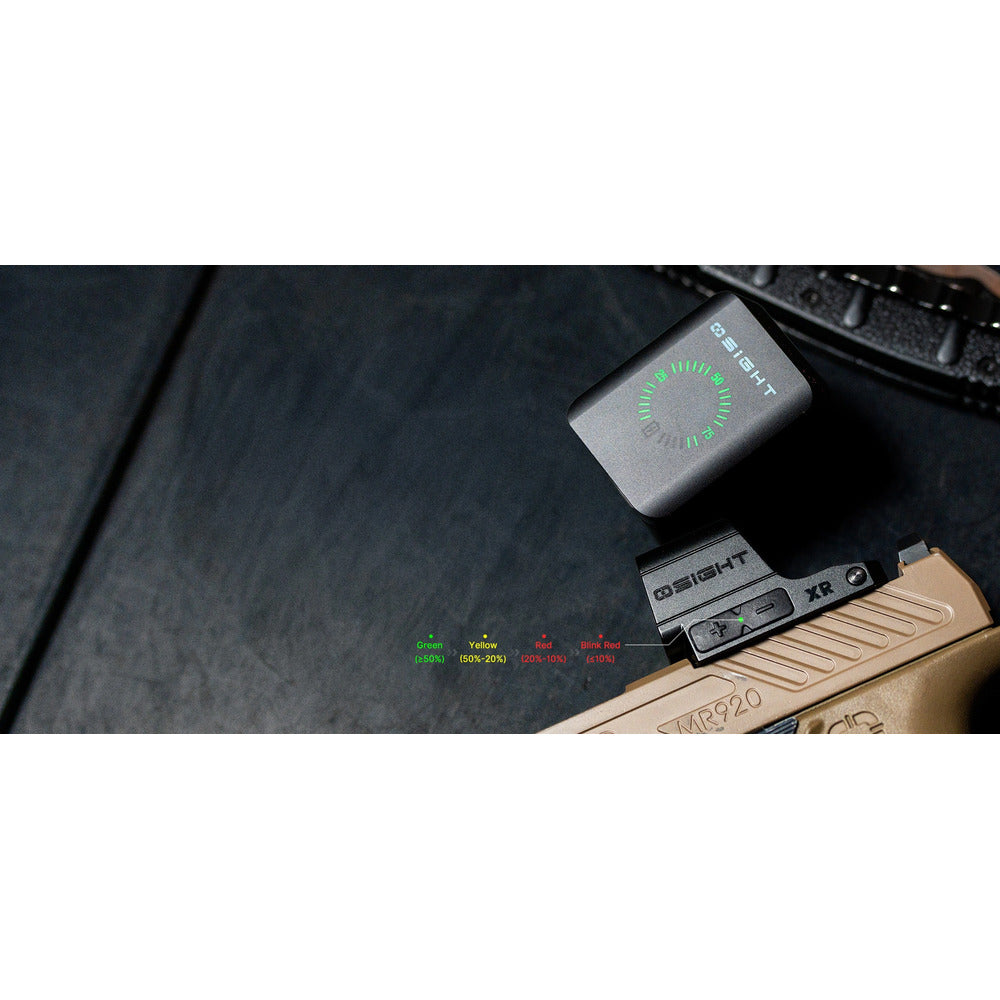

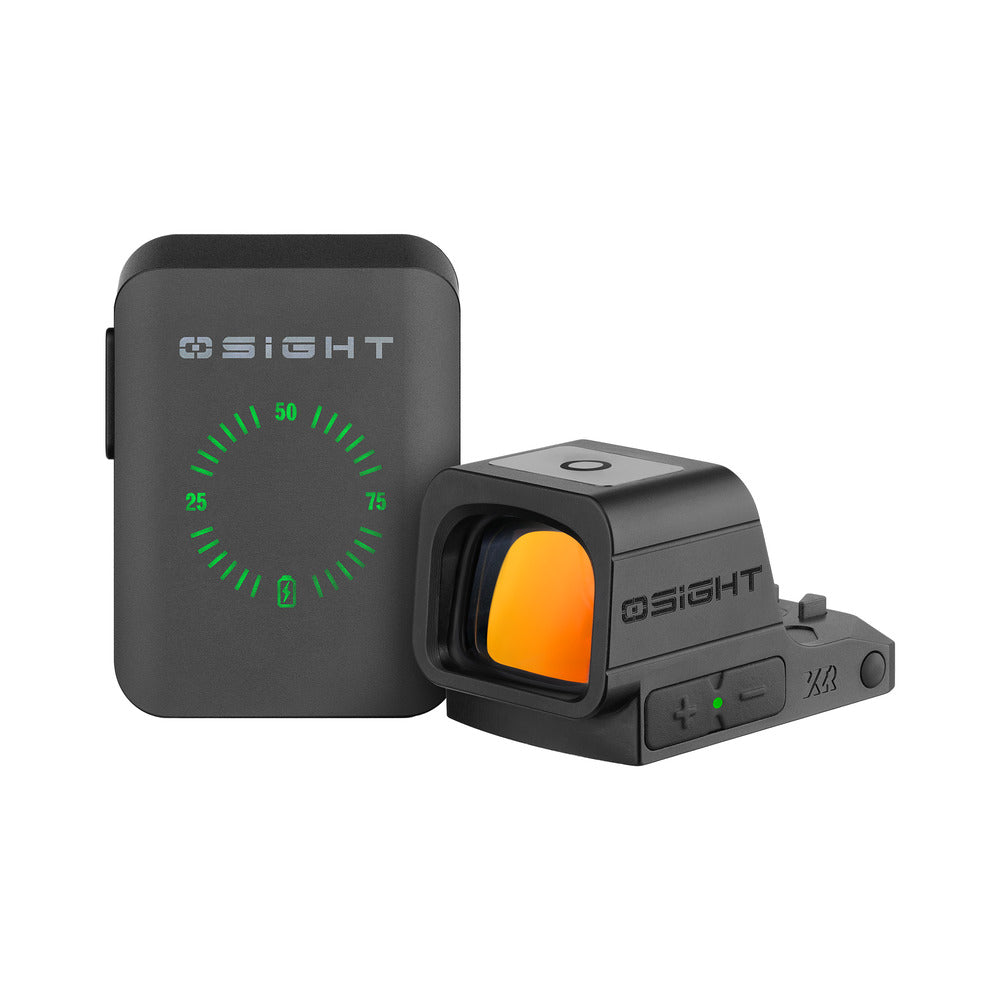

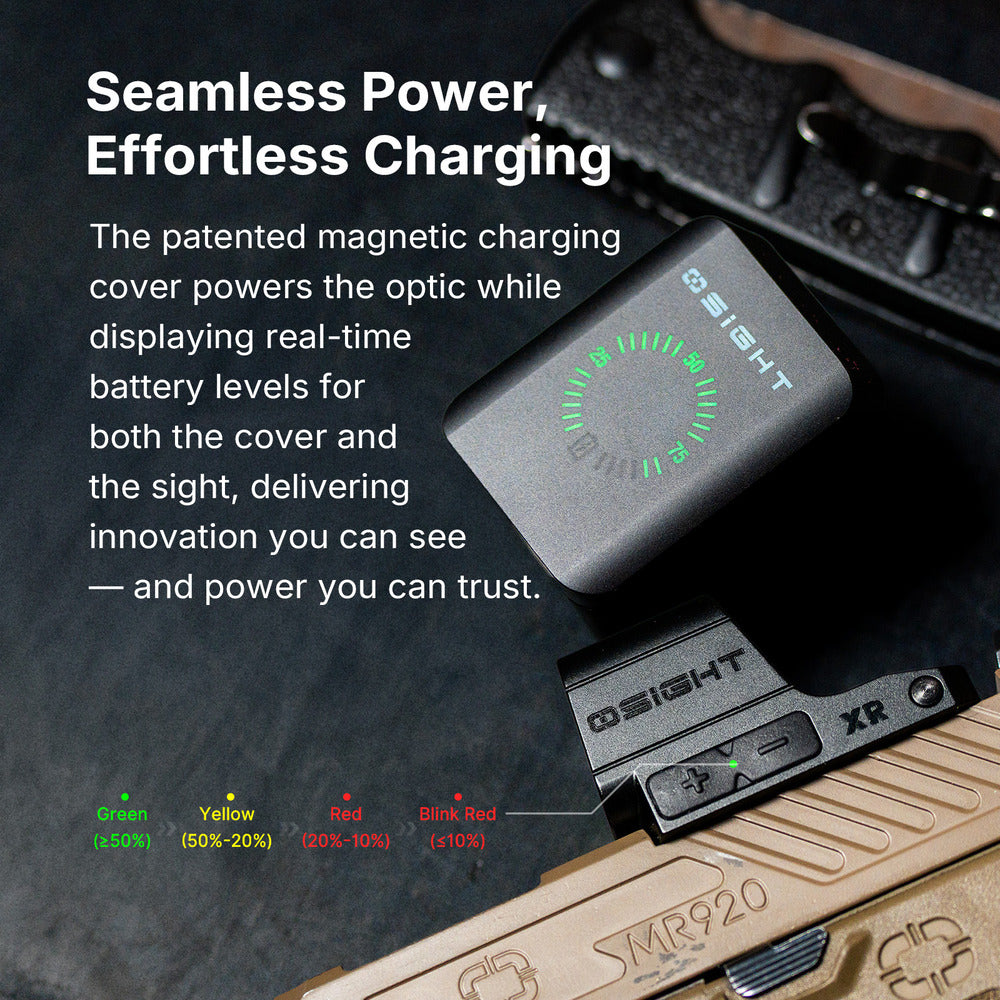

- Industryʼs First Patented Magnetic Charging Cover: The Osight XR brings a Patented Magnetic Charging Cover, the first and only of its kind in the industry, now upgraded with a redesigned form factor and integrated logo. It charges the optic while displaying real-time battery levels for both the cover and the sight, delivering innovation you can see and power you can trust.
- Aspherical Lens: The aspherical lens ensures zero distortion, parallax-free performance, and exceptional clarity for rapid, precise target acquisition.

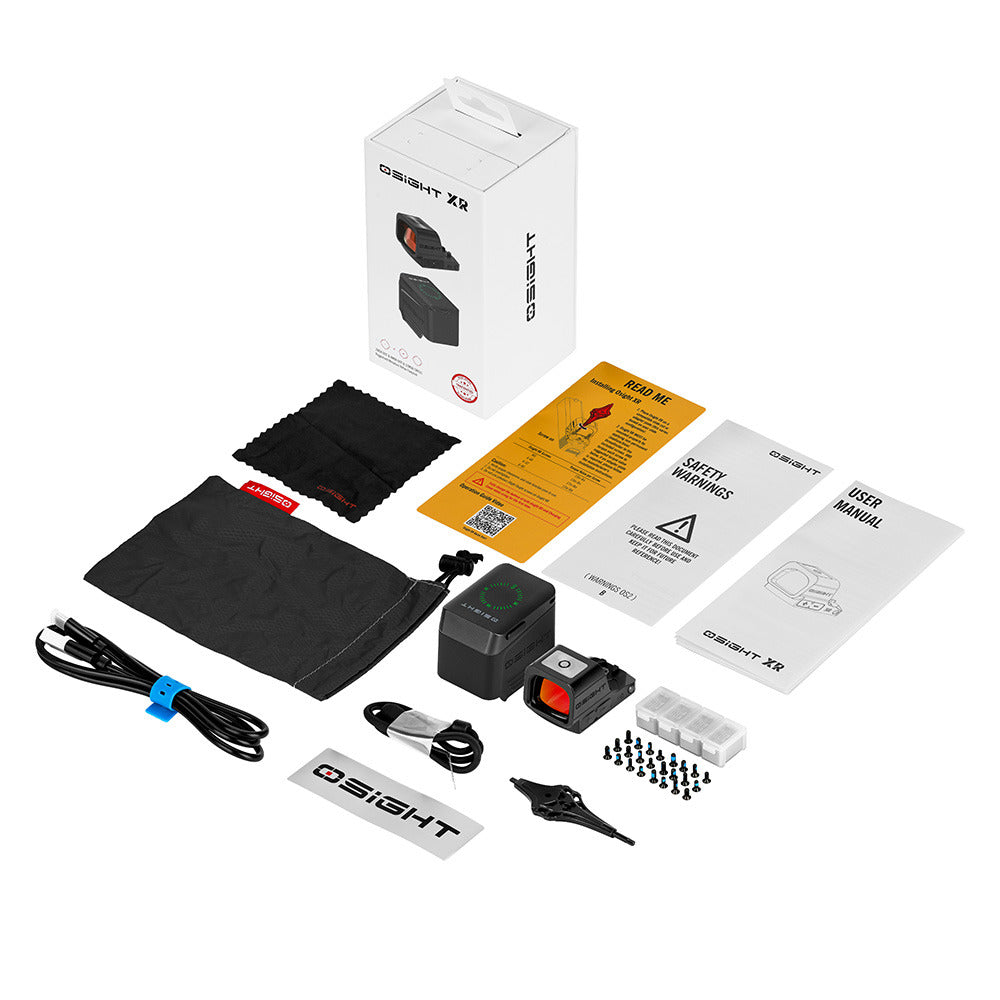

In The Box
- Optic × 1
- Charging Cover × 1
- USB-C Charging Cable × 1
- Adjustment Tool × 1
- READ ME Card × 1
- Silicone Lanyard × 1
- Osight XR Screw Kit × 1
- Pouch × 1
- Cleaning Cloth × 1
- Safety Warnings × 1
- User Manual × 1
- Osight Sticker × 1
Specs
| Optic Material | 7075-T6 Aluminum |
| Charging Cover Material | AL6061+PC |
| Charging Type | Optic: Magnetic Charging; Charging Cover: USB-C Charging |
| Memory Function | Yes |

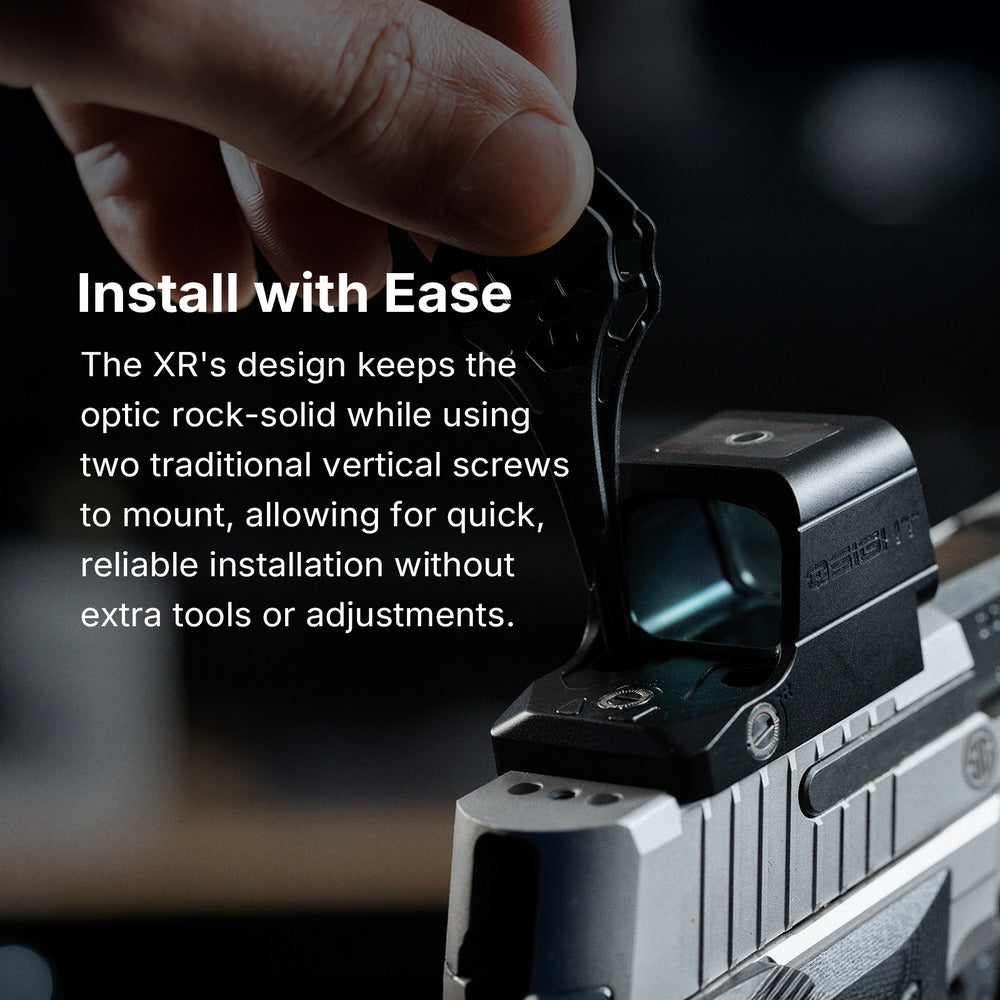

| Torque Specification | M3 15in-lbs Per Screw; 4-40 15in-lbs Per Screw; 6-32 17in-lbs Per Screw; 6-40 17in-lbs Per Screw; |
| Adjustment | 1 MOA per Click |
| Reticle Type | 2/6 MOA Dot & 32 MOA Circle |
| Multi-Coatings | Yes |

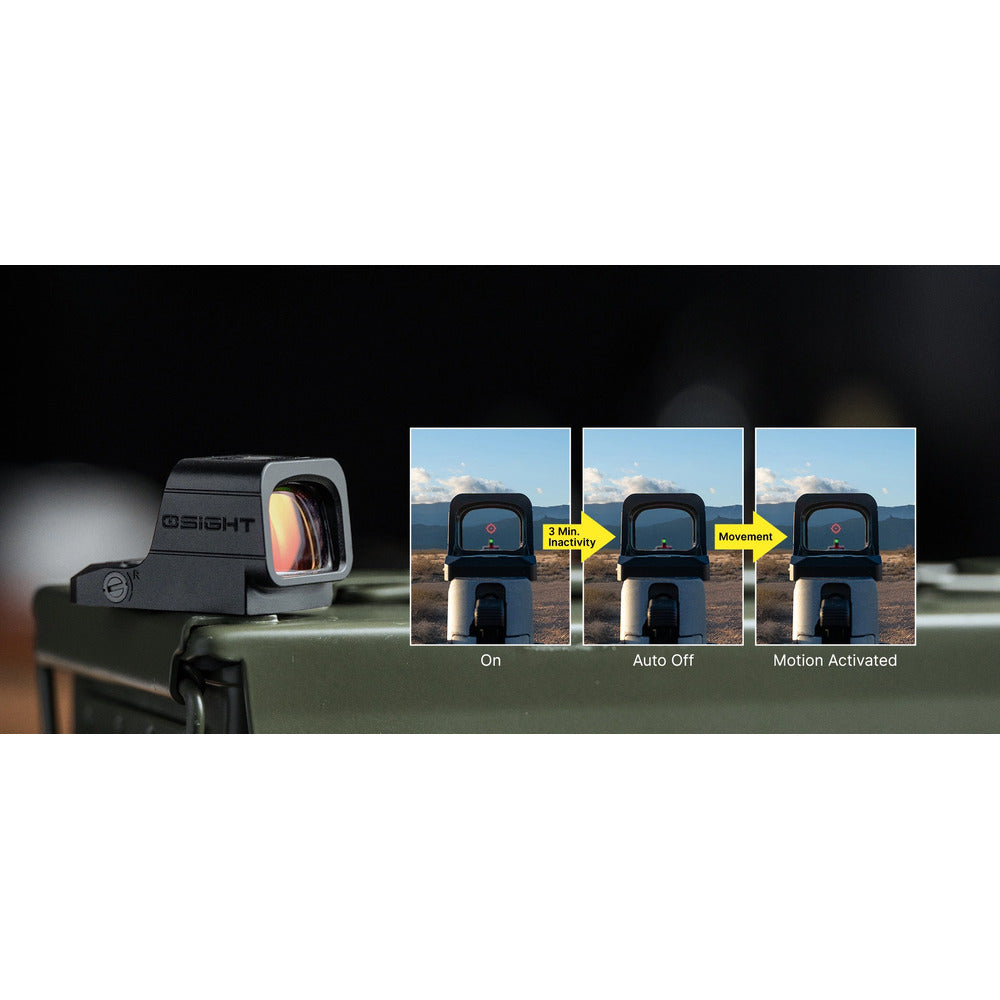

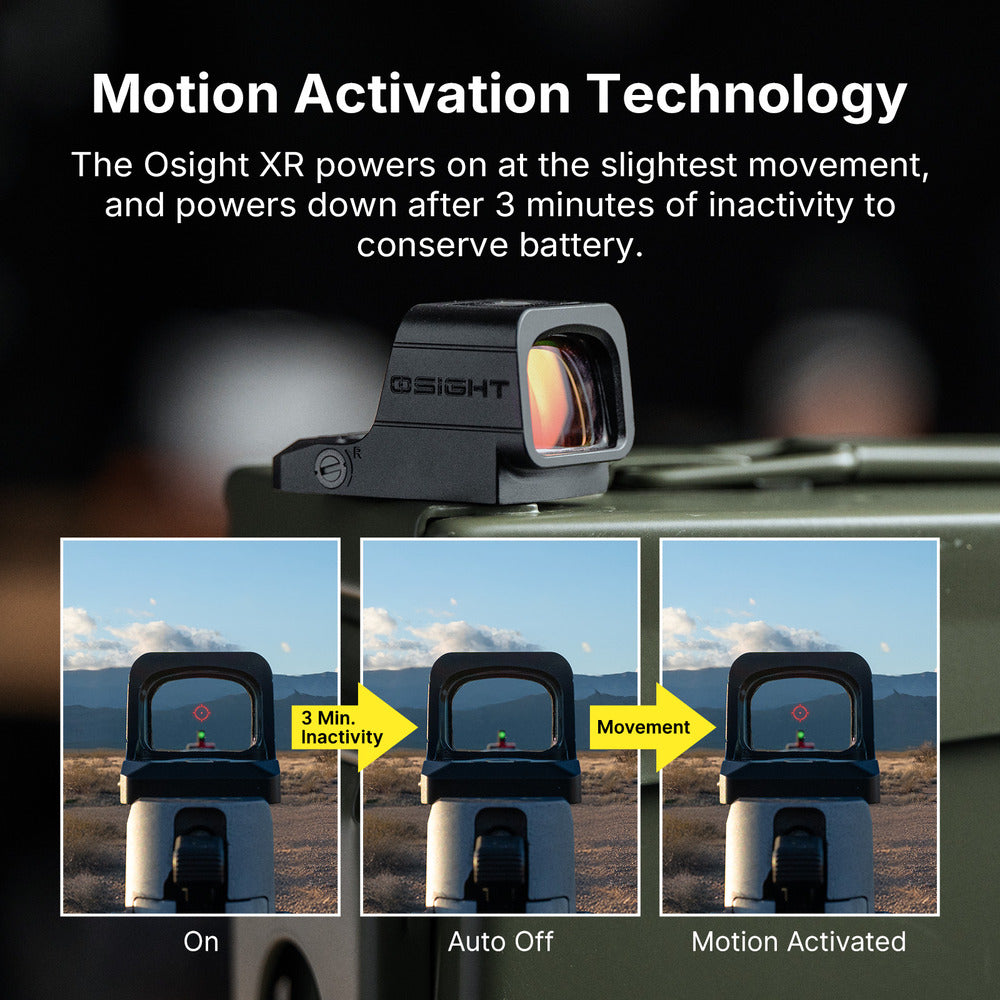

| Motion Sensor Function | Yes |
| Power Source | Optic: Built-in 89mAh Rechargeable Lithium Polymer Battery; Charging Cover: Built-in 800mAh Rechargeable Lithium Polymer Battery |
| Max. Runtime | 54,000 H (Mode 4, 2 MOA Dot-only); 324,000 H with Charging Cover (Mode 4, 2 MOA Dot-only) |
| Unlimited Eye Relief | Yes |
| Brightness Settings | 8 DL & 3 NV |
| Light Wavelength | 660 nm |
| Reticle Color | Red |
| Magnification | 1x |
| Parallax Free | Yes |
| W&E Travel Range | ± 45 MOA |
| Window Size | 0.91 × 0.71 in (23 × 18 mm) |
| Waterproof | Optic: IPX7; Charging Cover: IPX4 |
| Weight (g / oz) | Optic: 1.69 oz (48 g); Charging Cover: 1.94 oz (55 g) |
| Working temperature | 32~113°F (0~45℃) |
| Packaging | Magnetic Closure Box |
| Use | Duty, Self-Defense, Home Defense, Training, Competition |
| Dimensions (Length x Width x Height) | Optic: 1.91 × 1.18 × 1.16 in (48.7 × 30 × 29.5 mm) Charging Cover: 2.01 × 1.42 × 1.65 in (51 × 36 × 42 mm) |
| Storage Temperature | -4~140°F (-20~60℃) |
