Description

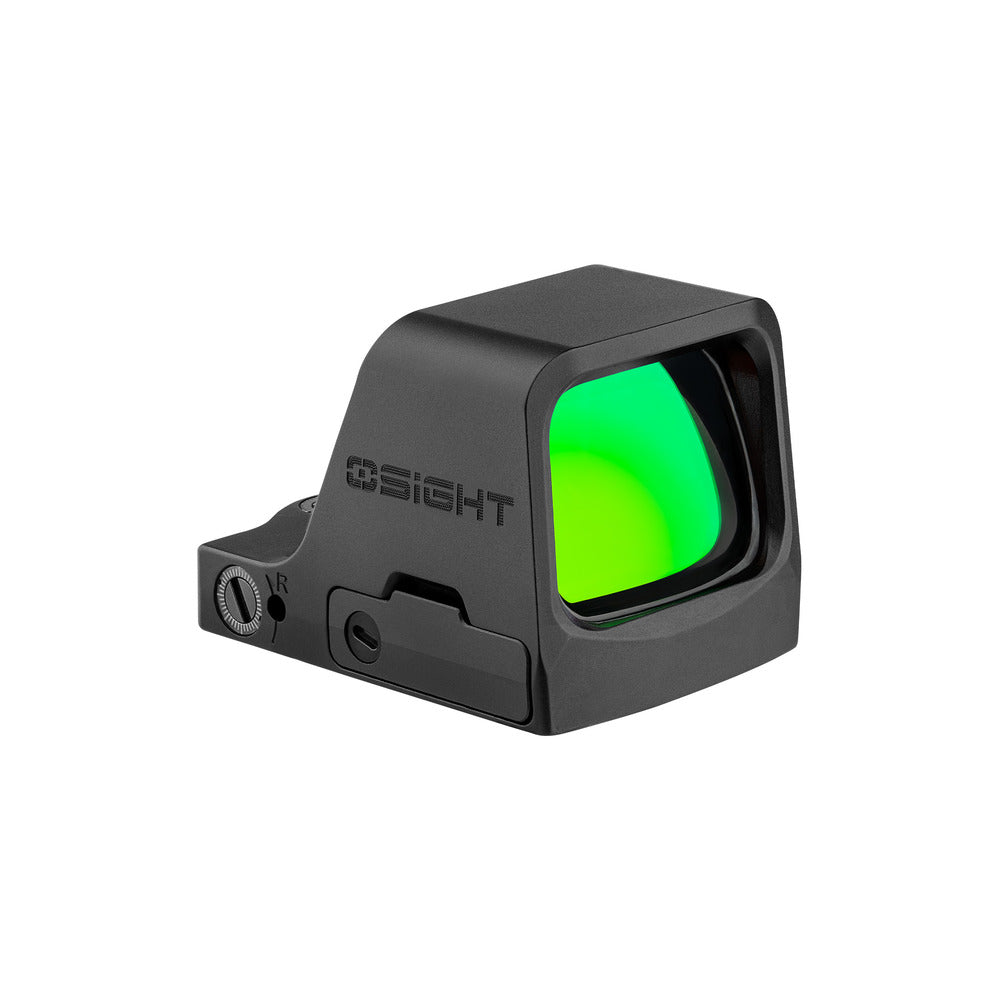

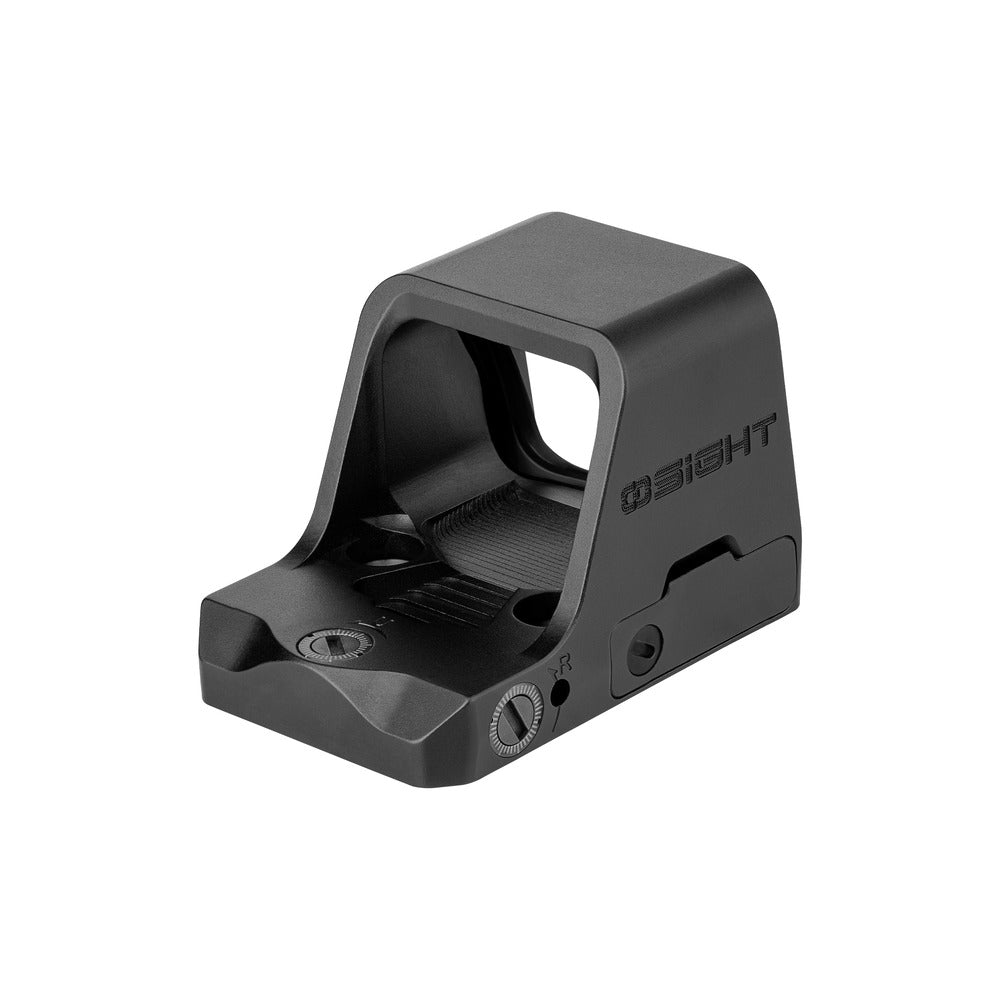

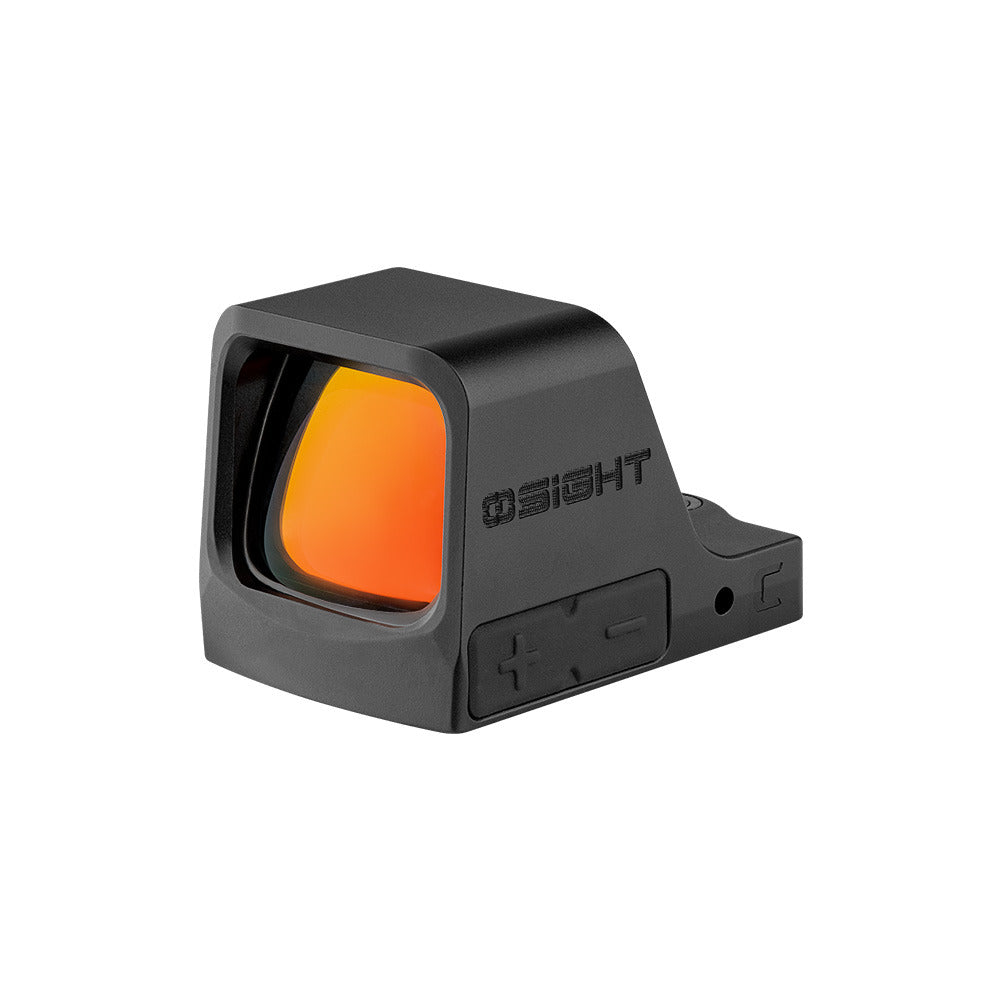

The Osight C Open Reflex Optic is a lightweight, fast‑acquisition red‑dot sight designed for pistols and compact firearms. Its open‑emitter design provides a wide, unobstructed field of view, allowing shooters to quickly locate the reticle during rapid engagements. The optic features a replaceable side‑loading battery, enabling users to swap batteries without removing the sight or re‑zeroing. Built for reliability, the Osight C delivers crisp illumination, durable construction, and compatibility with common pistol optic footprints.
Features

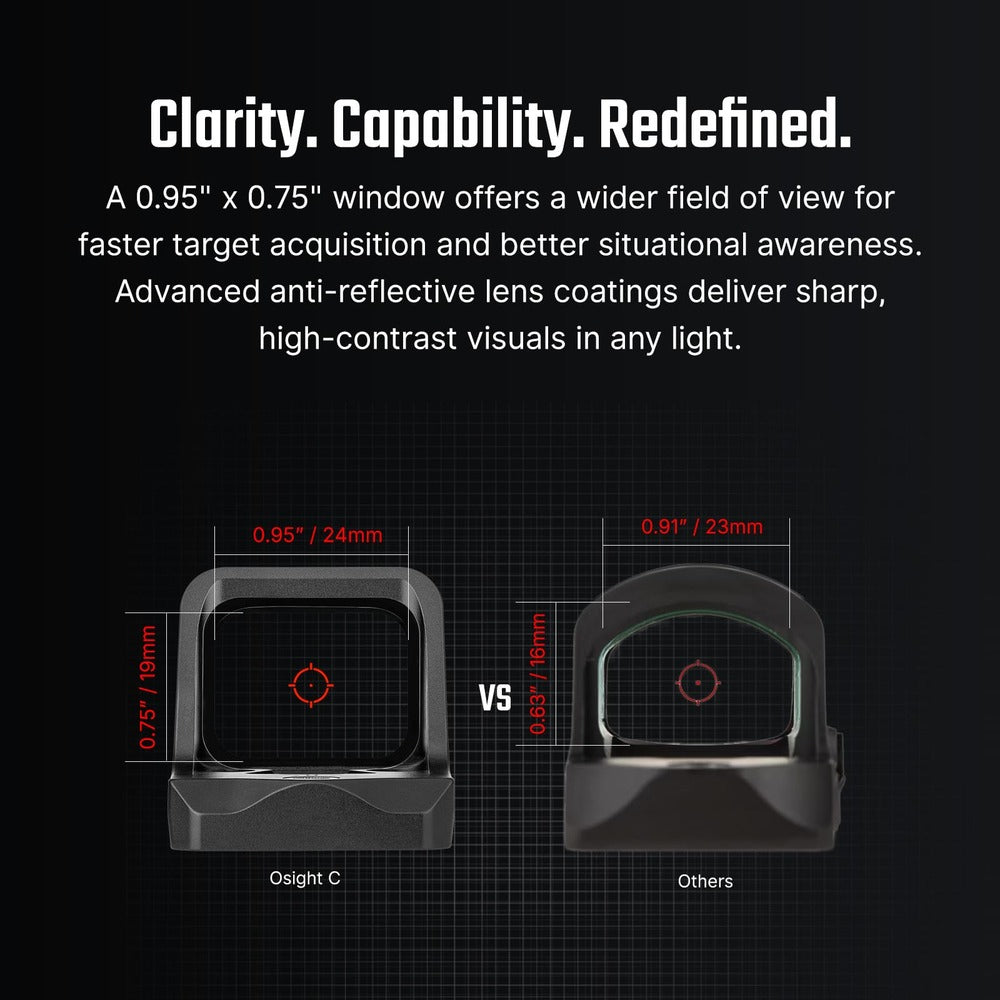

- Large Field of View with Multi-Coated Lens: Engineered with advanced anti-reflective lens coatings, this sight maximizes light transmission for unmatched clarity, allowing you to quickly lock onto targets with pinpoint precision. The 0.95'' × 0.75'' window delivers a greater sight picture, ensuring faster target acquisition and quicker follow-up shots.

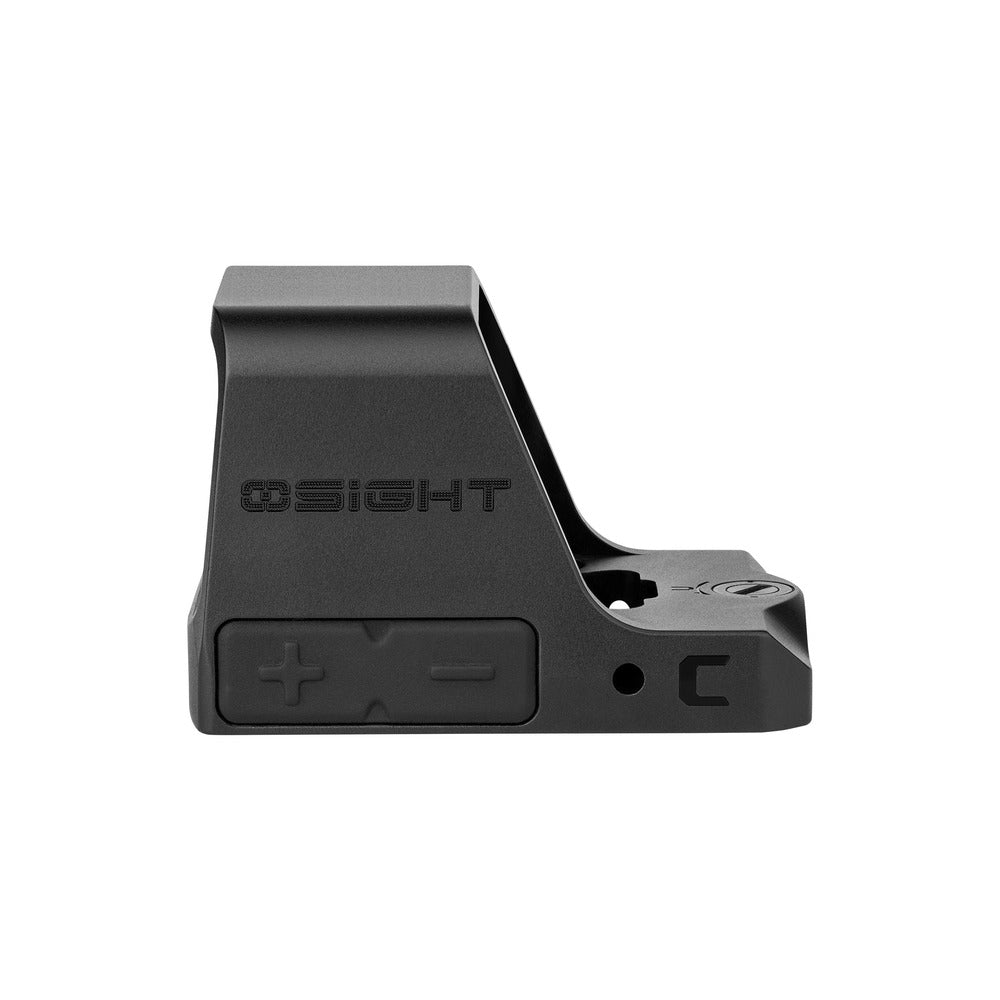

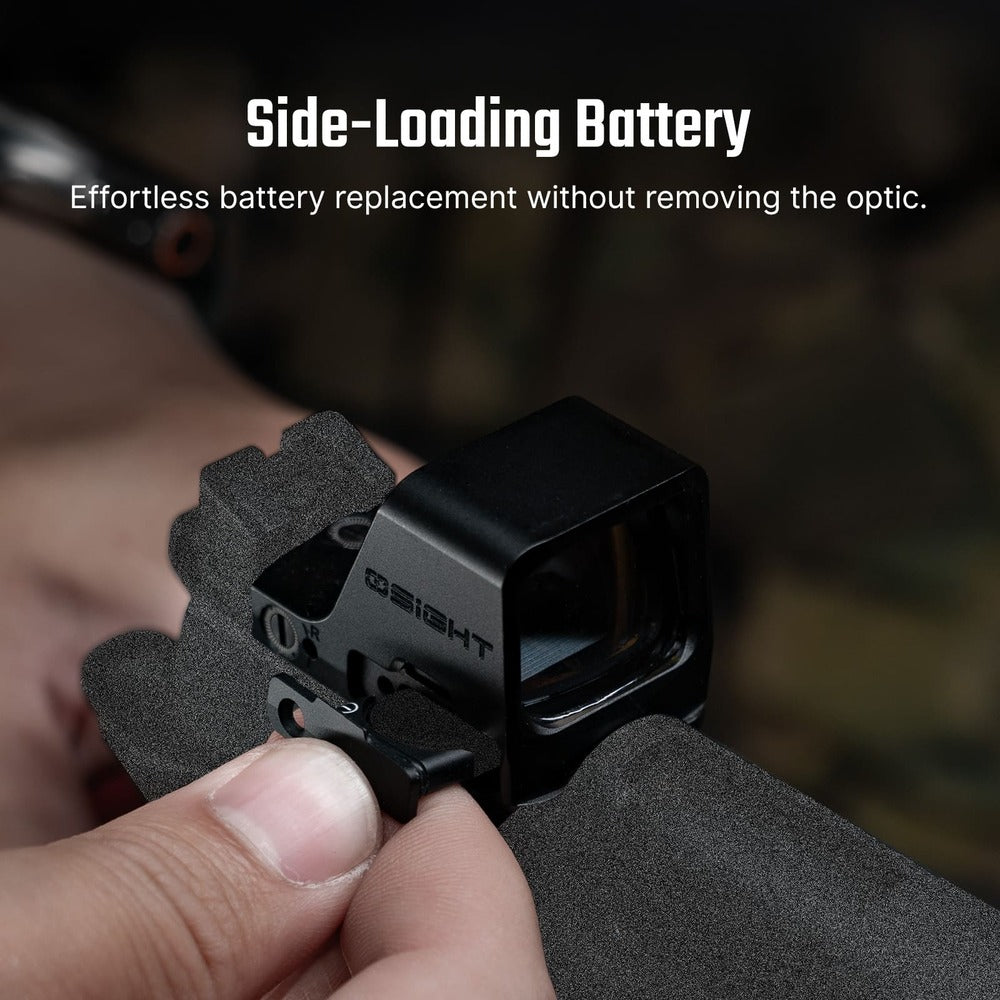

- Side-Loading Battery: Effortless battery replacement without removing the optic ensures hassle-free re-zeroing. A high-end CR1632 battery offers easy accessibility while maintaining steady performance.

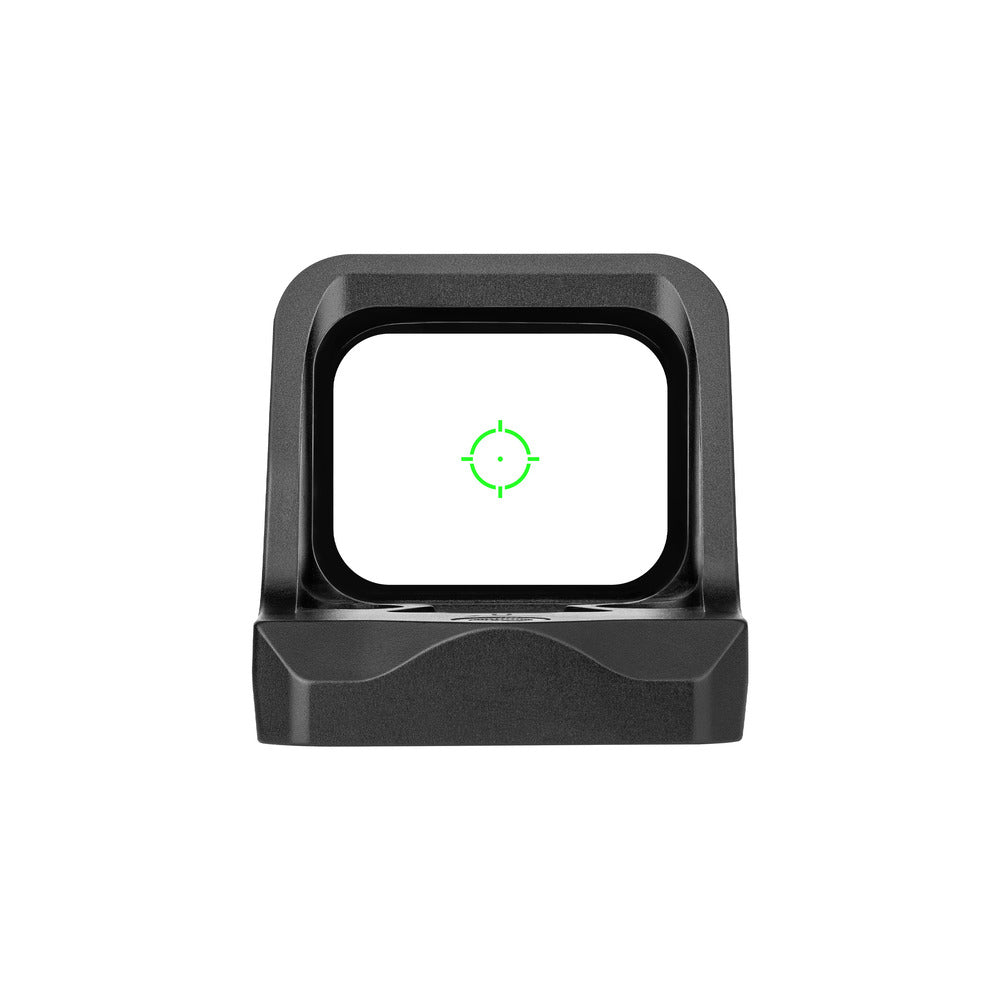

- 3 MOA Dot + 32 MOA Circle: Switching between dot-and-circle, dot-only, or circle-only reticles, you can tailor your aiming solution to any shooting scenario. The sharp and bright dot-and-circle reticle provides a cutting-edge aiming experience.

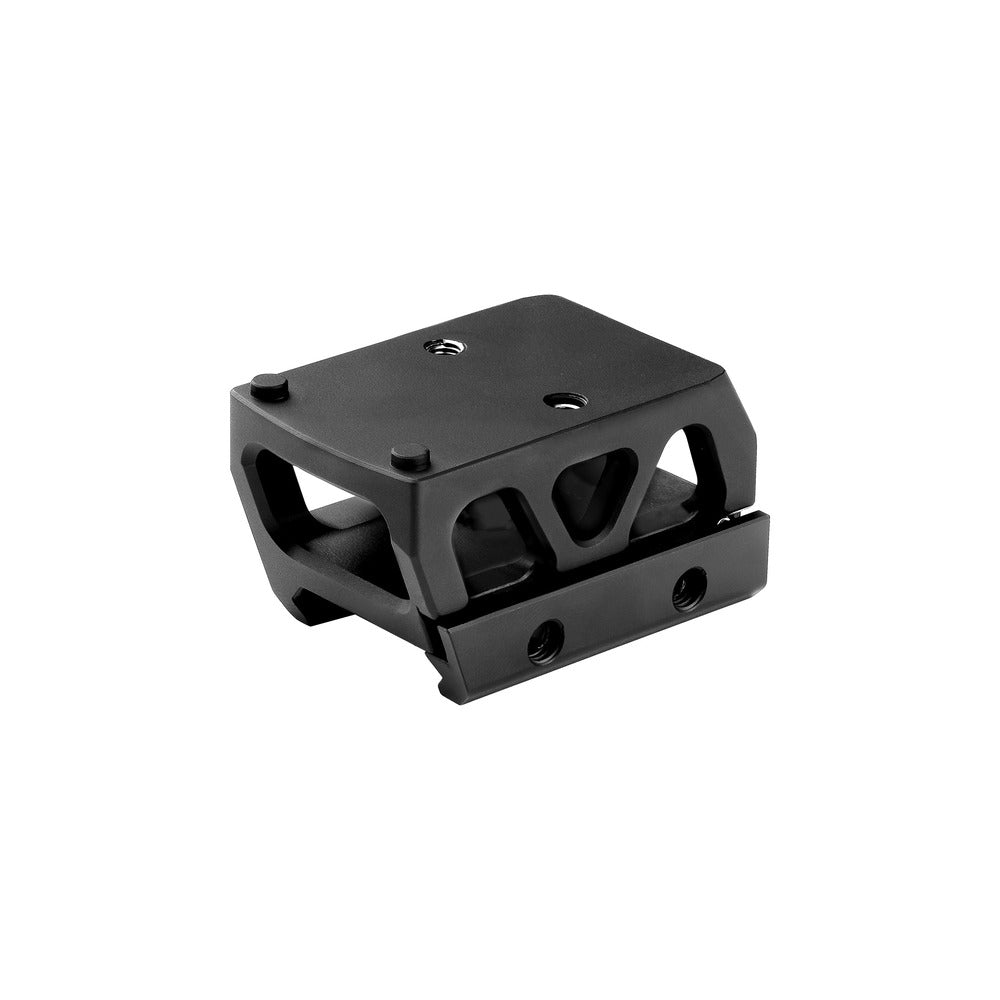

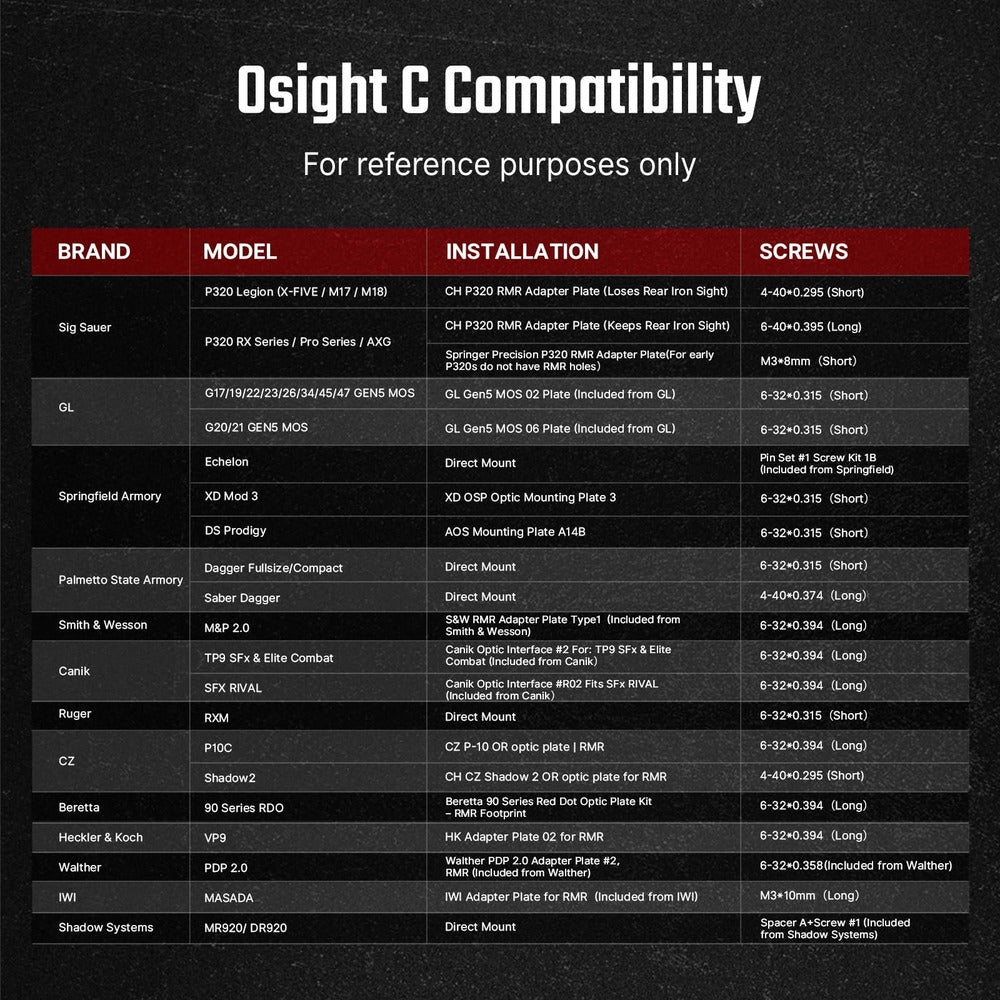

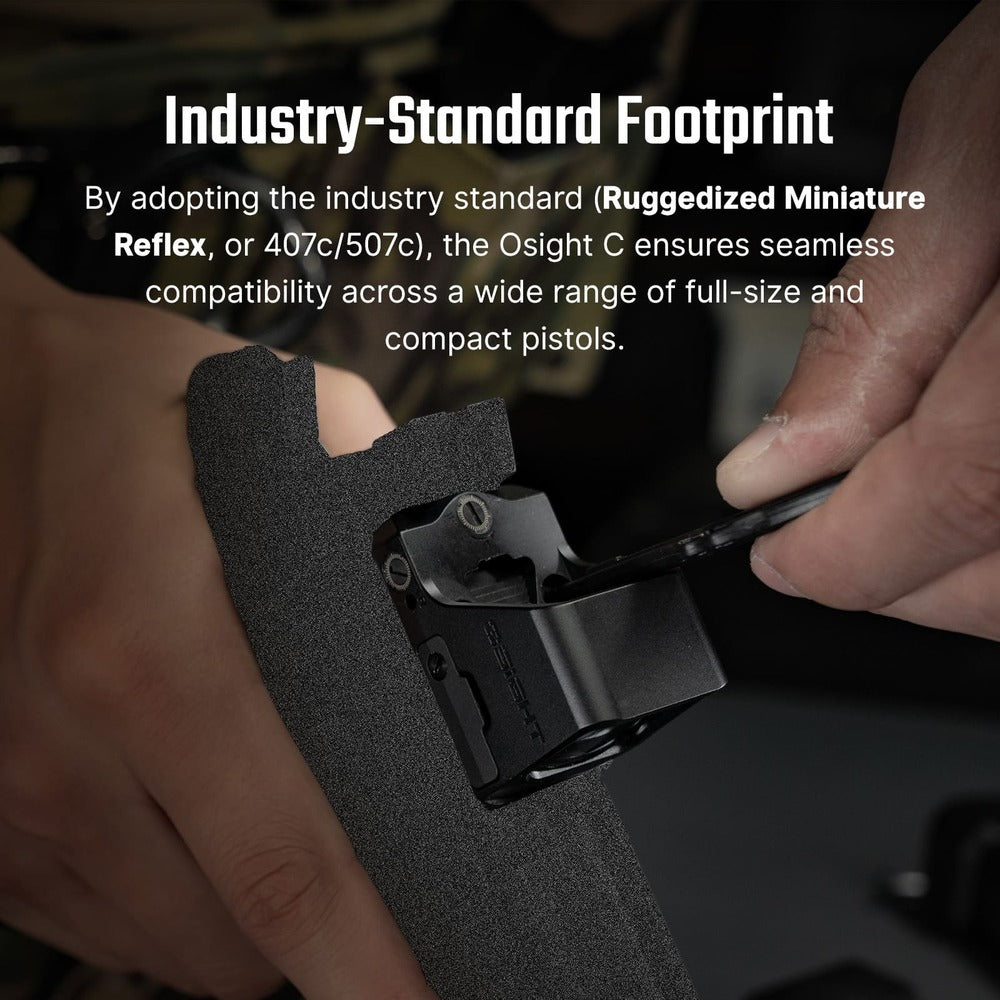

- Most Common Footprint: By adopting the de facto industry standard (Ruggedized Miniature Reflex, or 407c/507c footprint), Osight C GN is a versatile addition to many full-size and compact pistols. Osight picatinny mounts add even more possibilities with both high and low options that will work with most rifle applications.

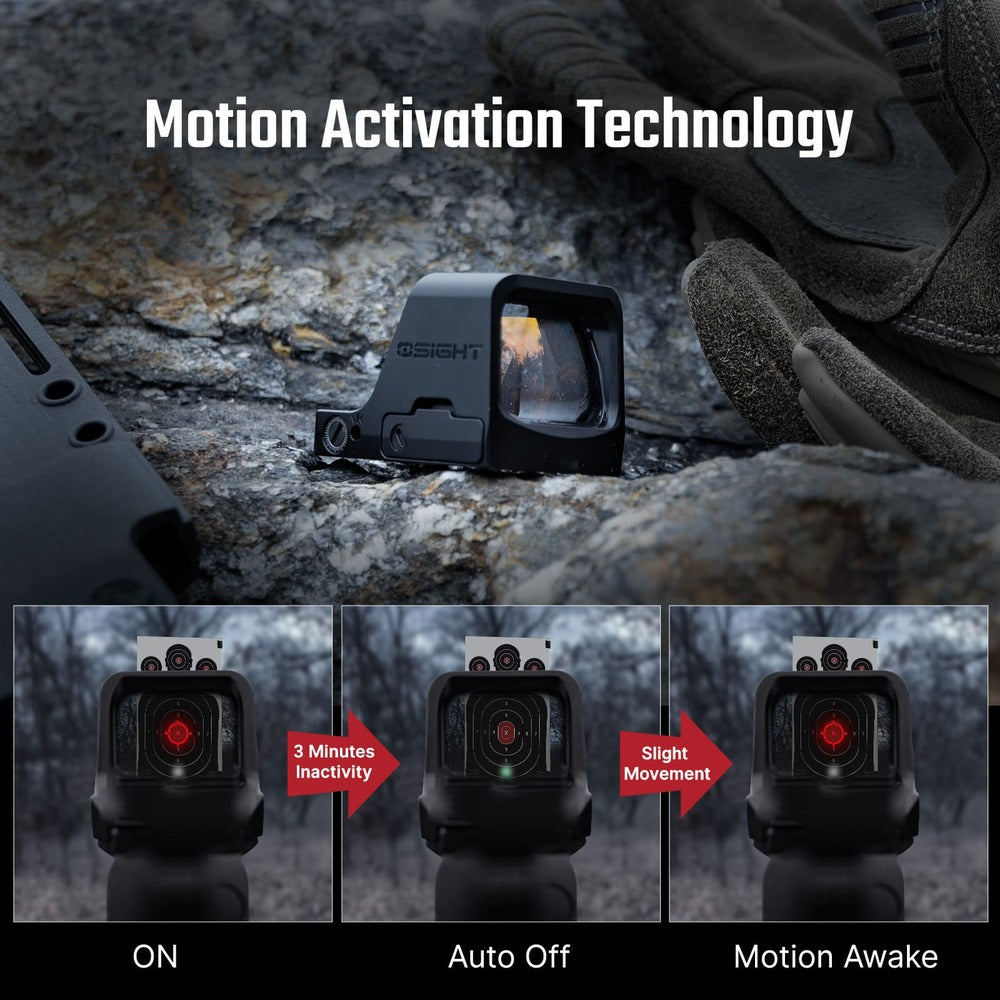

- Motion Sensor Function: Motion sensor activates Osight C GN at the slightest movement, and powers down after 3 minutes of inactivity to conserve battery.

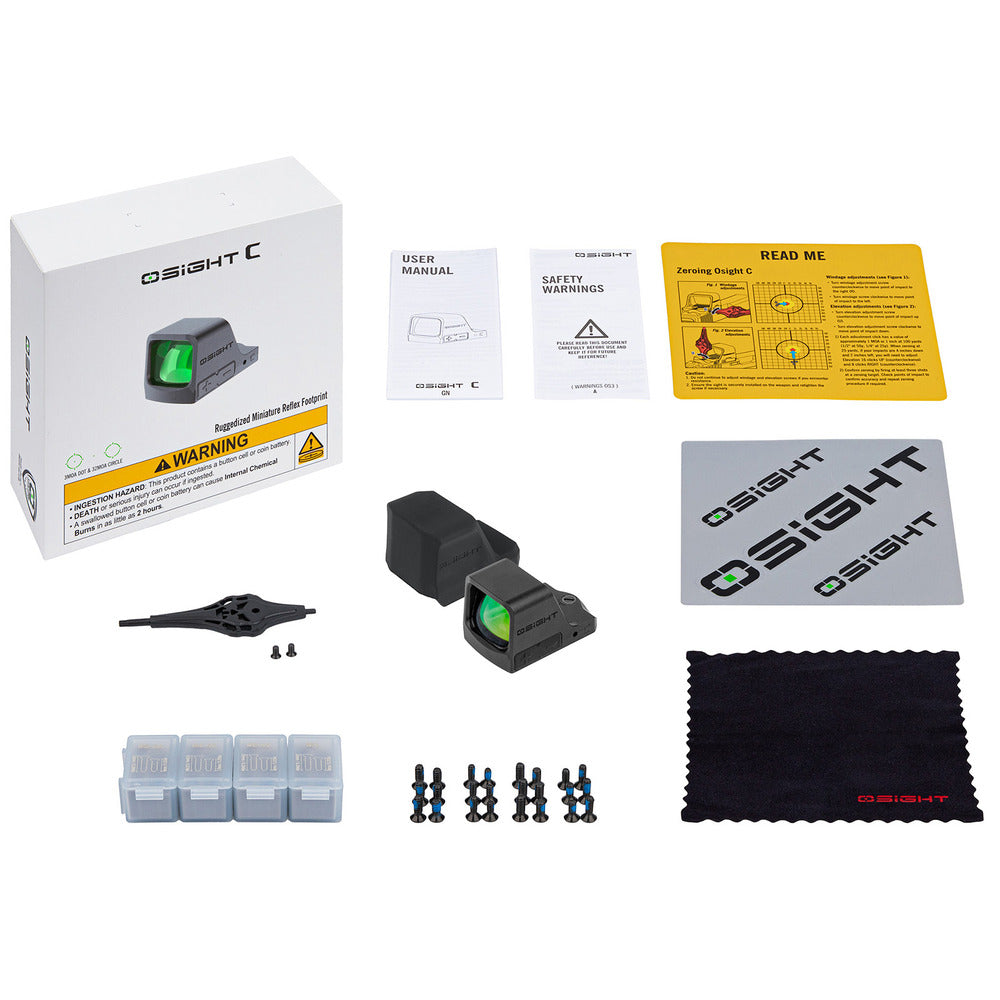

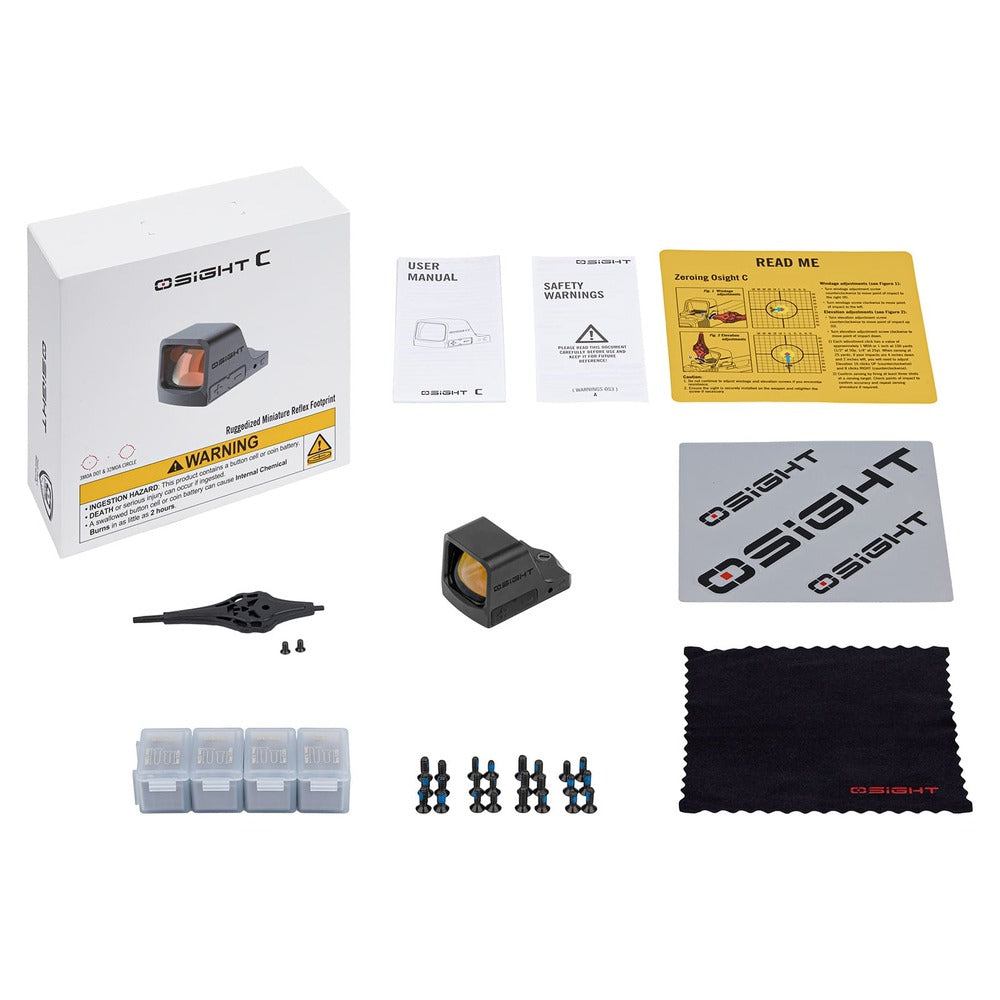

In The Box
- Optic (CR1632 battery included) × 1
- READ ME Card × 1
- Osight C Screw Kit x 1
- Cleaning Cloth × 1
- Safety Warnings x1
- User Manual × 1
- Osight Sticker x1
- Adjustment Tool × 1
- Spare Battery Compartment Screw x 2
Specs
Specs Highlights:
Adjustment
1 MOA per Click
Reticle Type
3 MOA Dot & 32 MOA Circle
Weight
1.48 oz / 42 g
Magnification
1x
Waterproof
IPX6
| Adjustment | 1 MOA per Click |
| Reticle Type | 3 MOA Dot & 32 MOA Circle |
| Multi-Coatings | Yes |
| Motion Sensor Function | Yes |
| Torque Specification(s) | M3 15in-lbs Per Screw; 4-40 15in-lbs Per Screw; 6-32 17in-lbs Per Screw; 6-40 17in-lbs Per Screw |
| Memory Function | Yes |
| Working Temperature (Optic) | -22°F to 140°F (-30°C to 60°C) |
| Storage Temperature (Optic) | -40°F to 158°F (-40°C to 70°C) |
| Power Source | CR1632 battery |
| Weight | 1.48 oz / 42 g |
| Max. Runtime | Green Circle-Dot: 130,000 H (Mode 3 Dot-only) |
| Unlimited Eye Relief | Yes |

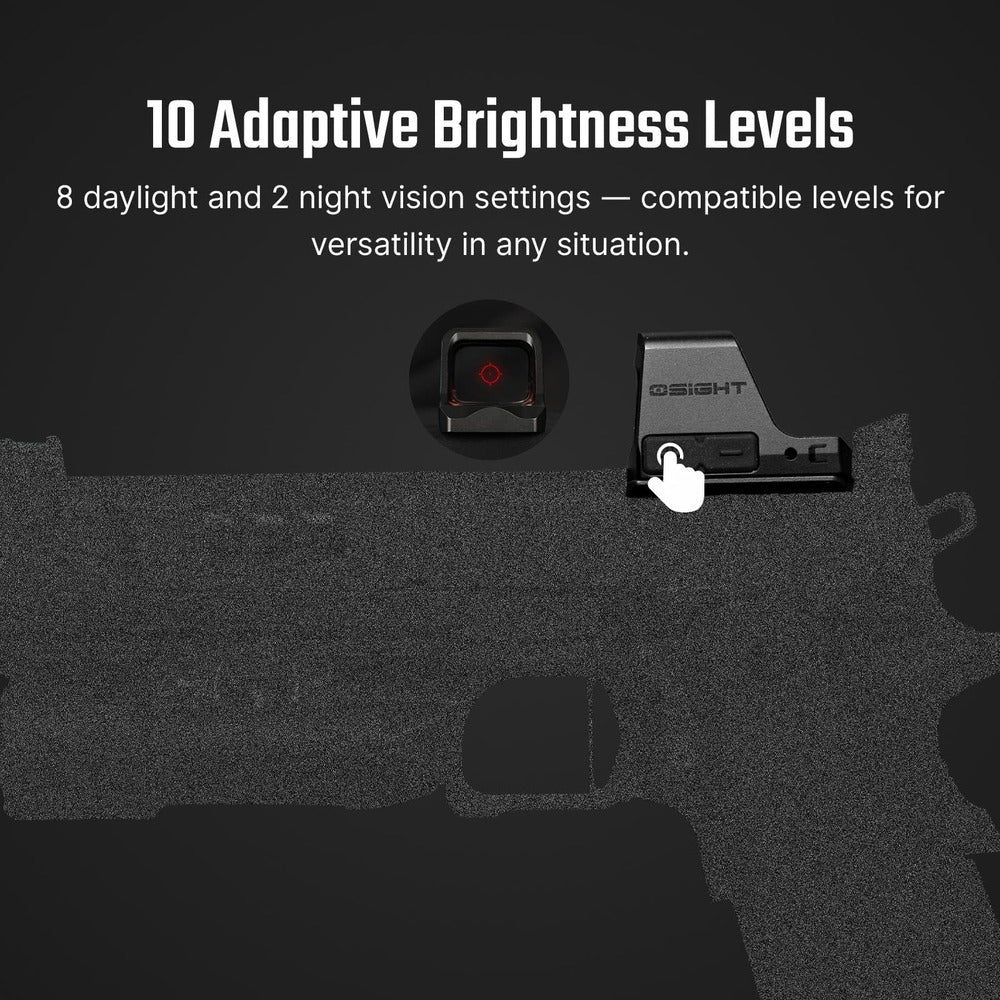

| Brightness Settings | 8 DL & 2 NV |
| Light Wavelength | Green Circle-Dot: 520 nm |
| Reticle Color | Green |
| Magnification | 1x |
| Parallax Free | Yes |
| W&E Travel Range | ± 45 MOA |

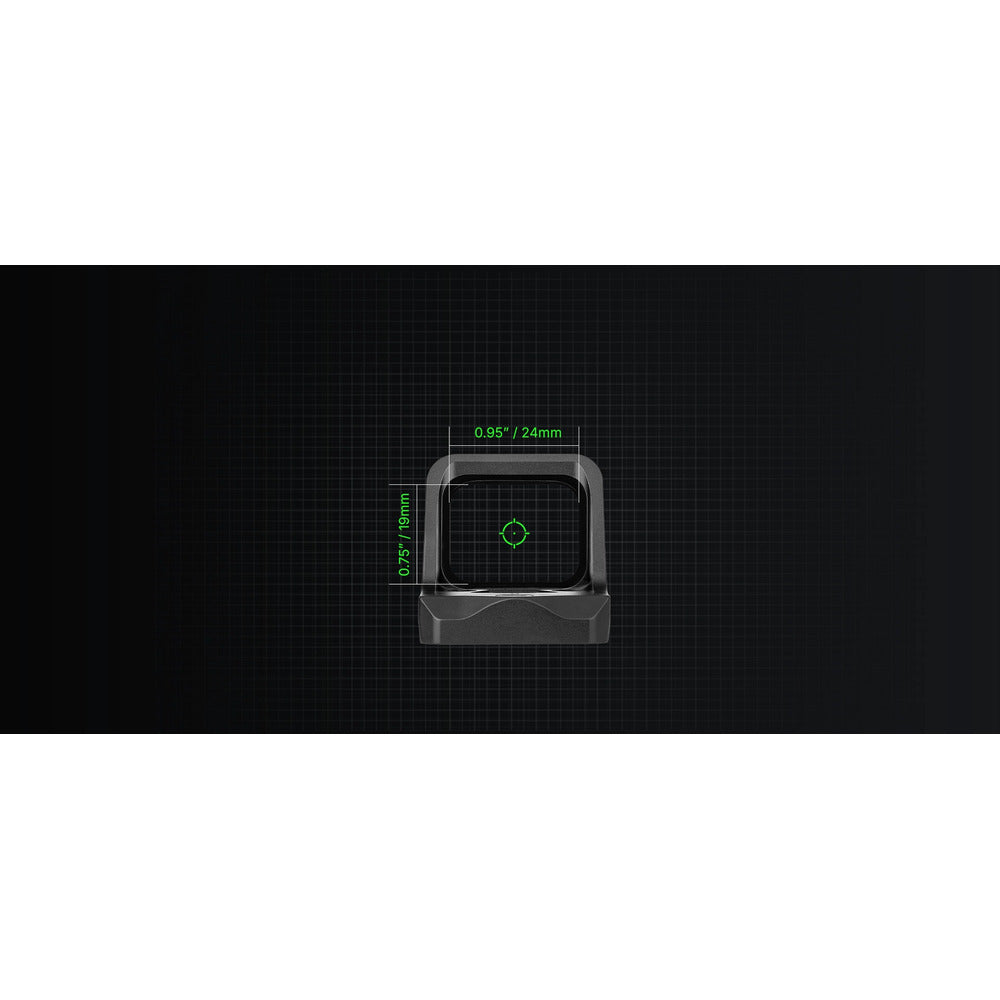

| Window Size | 0.95 × 0.75 in; 24 × 19 mm |
| Waterproof | IPX6 |
| Dimensions (Length x Width x Height) | 1.77 × 1.18 × 1.18 in (45 × 30 × 30 mm) |
