Description

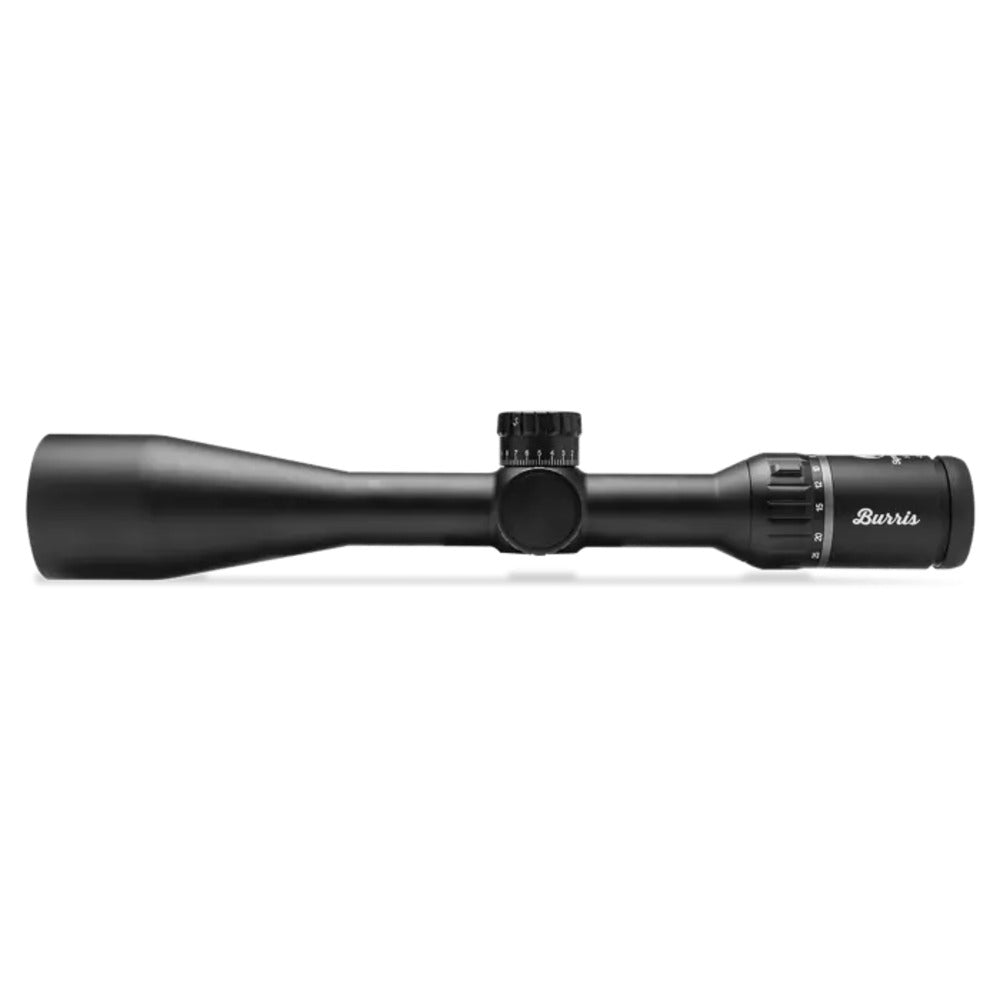

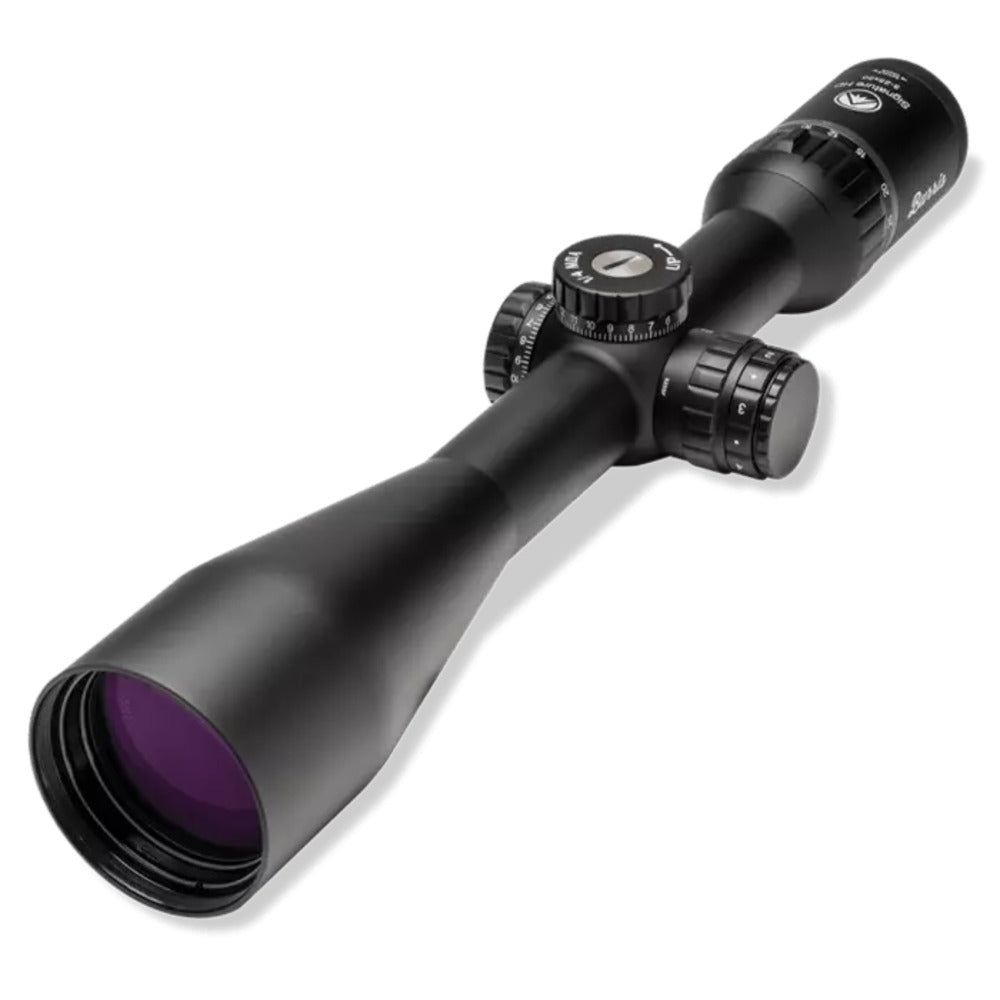

For precision or long-range shooting, the 5-25x50 Signature HD version is built with a 30mm nitrogen-filled tube and is available with three different reticle options. Sporting the Burris front focal plane, 6.5 Creedmoor illuminated reticle designed around the popular 140-grain ELD bullet. Quick holdover estimates for 6.5 Creedmoor are ideal for shooting or hunting when confidence and seconds matter. The thin crosshairs on the Fine Plex reticle are ideal for those looking for a simple and precise sight window. The optic is also available with a Ballistic E3™ Illuminated reticle. Only the tall knob models with the Plex and 6.5 Creedmoor reticle have the zero stop.
Features
| Reticles | Ballistic E3™ |
| Color | Matte Black |
| Knob Style | Short - Push / Pull Locking |
| Illumination | Yes |
| Illumination Control | Rotary dial |
| Illumination Settings | 6 brightness settings |
| Magnification | 5-25x |
| Objective Diameter | 59.18 mm |
| Objective Lens Diameter | 50 mm |
| Finish | Matte |
| Ocular Diameter | 44.96 mm |
| Focal Plane | Rear Focal Plane |
| Main Tube Size | 30 mm |
| Field of View | 22.5 - 4.5 ft. |
| Eye Relief | 3.3 - 3.6 in. |
| Exit Pupil (low - high) | 8 - 2.2 mm |
| Click Value | 1/4 MOA |
| Elevation Adjustment, Total Capability | 65 MOA |
| Windage Adjustment | 65 MOA |
| Parallax/Focus | 25 yds to infinity |

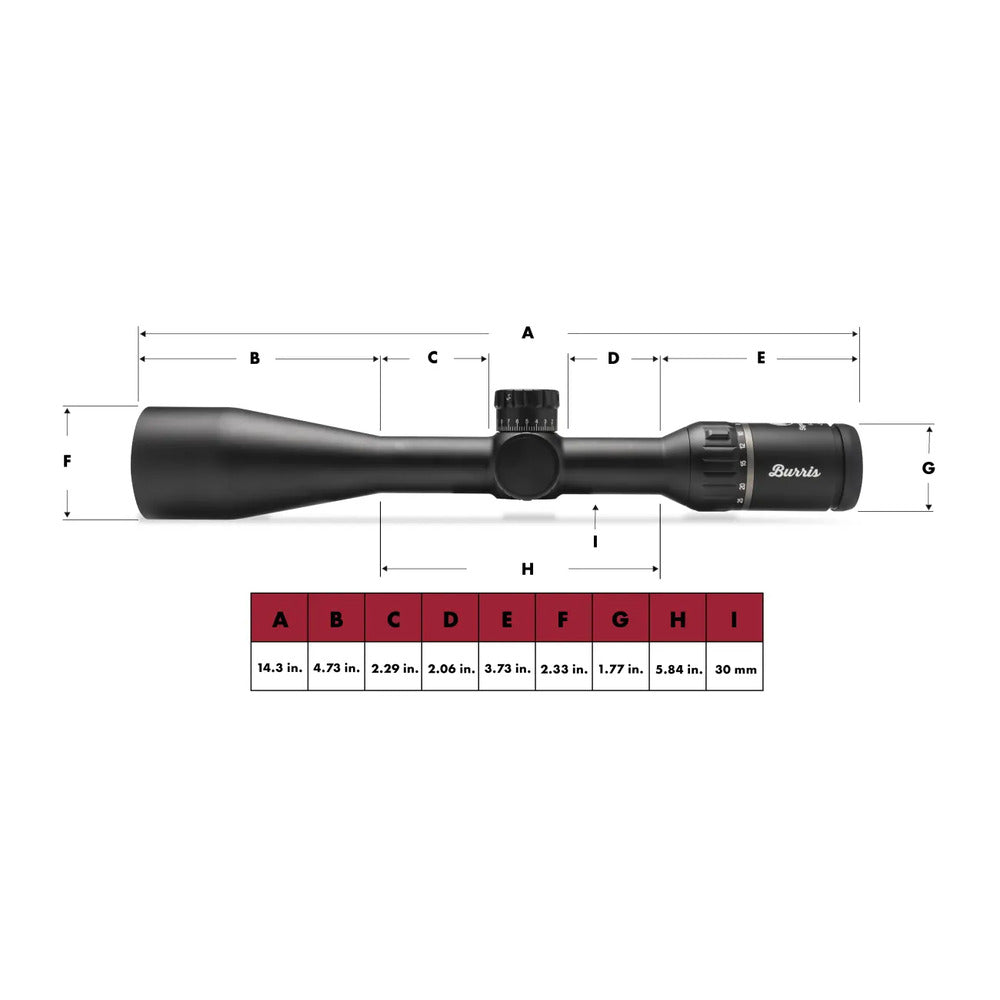

| Length | 14.3 in. |
| Weight | 24 oz. |
| Battery | CR2032 |
Specs Highlights:
Magnification
5-25x
Field of View
22.5 - 4.5 ft.
Eye Relief
3.3 - 3.6 in.
Length
14.3 in.
Weight
24 oz.
