Description

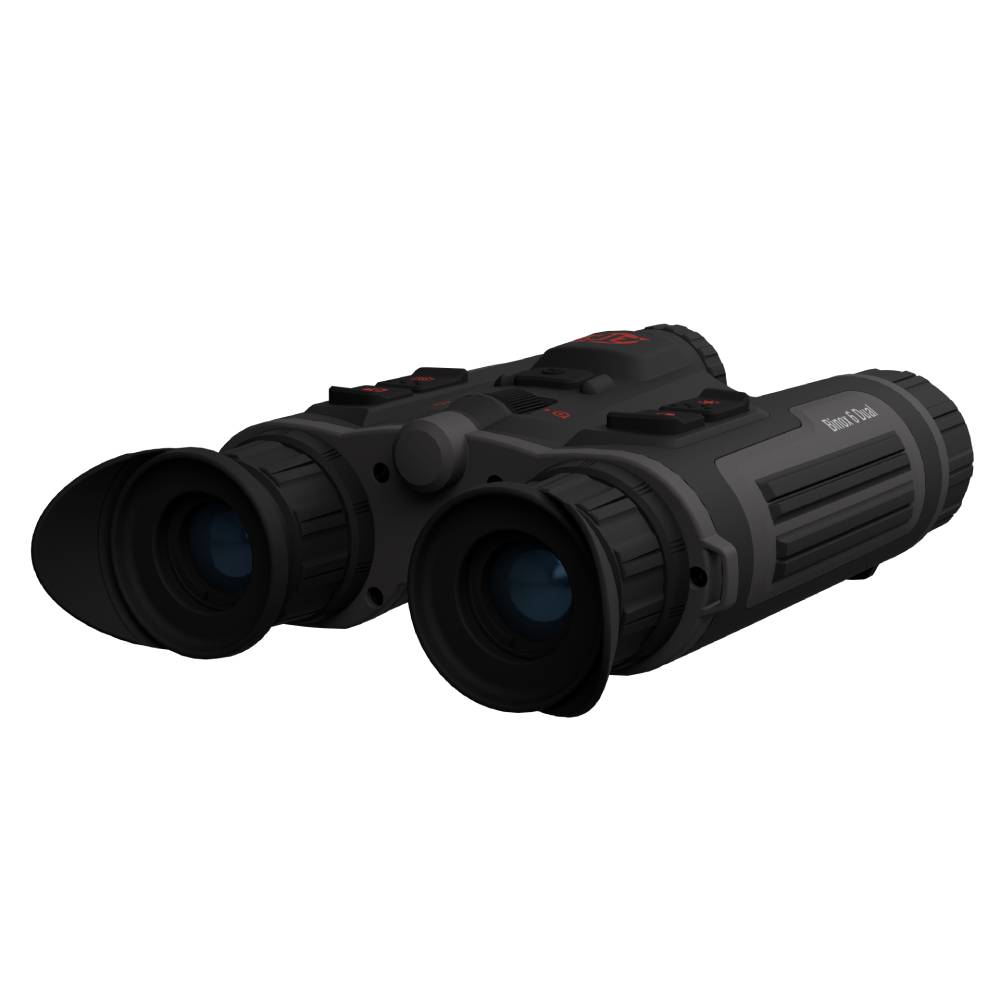

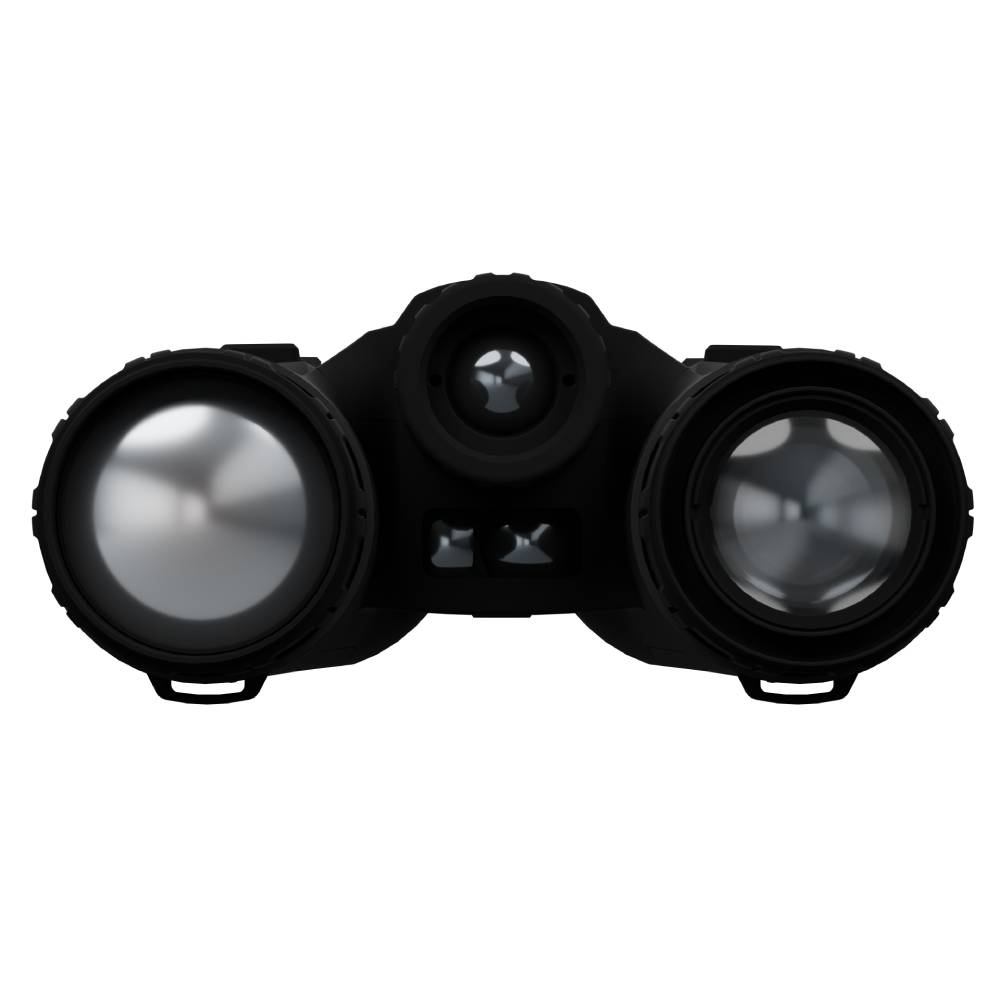

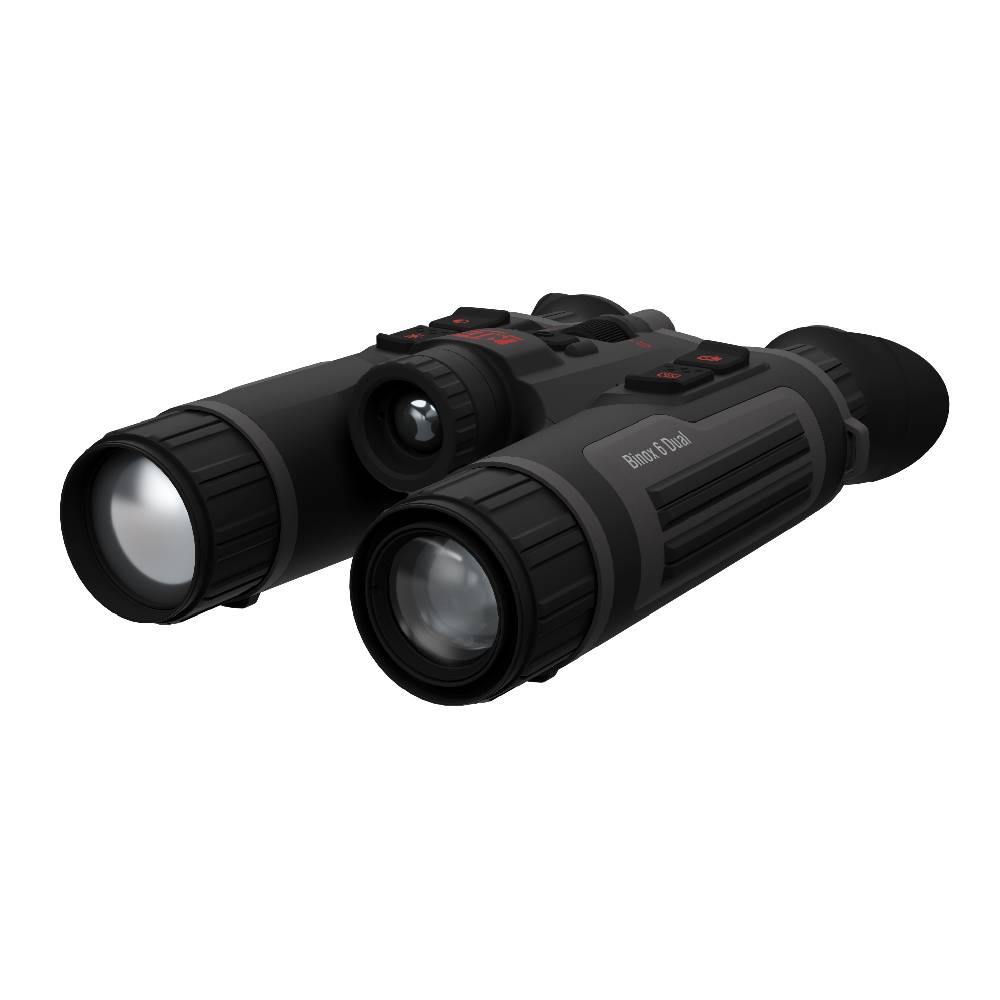

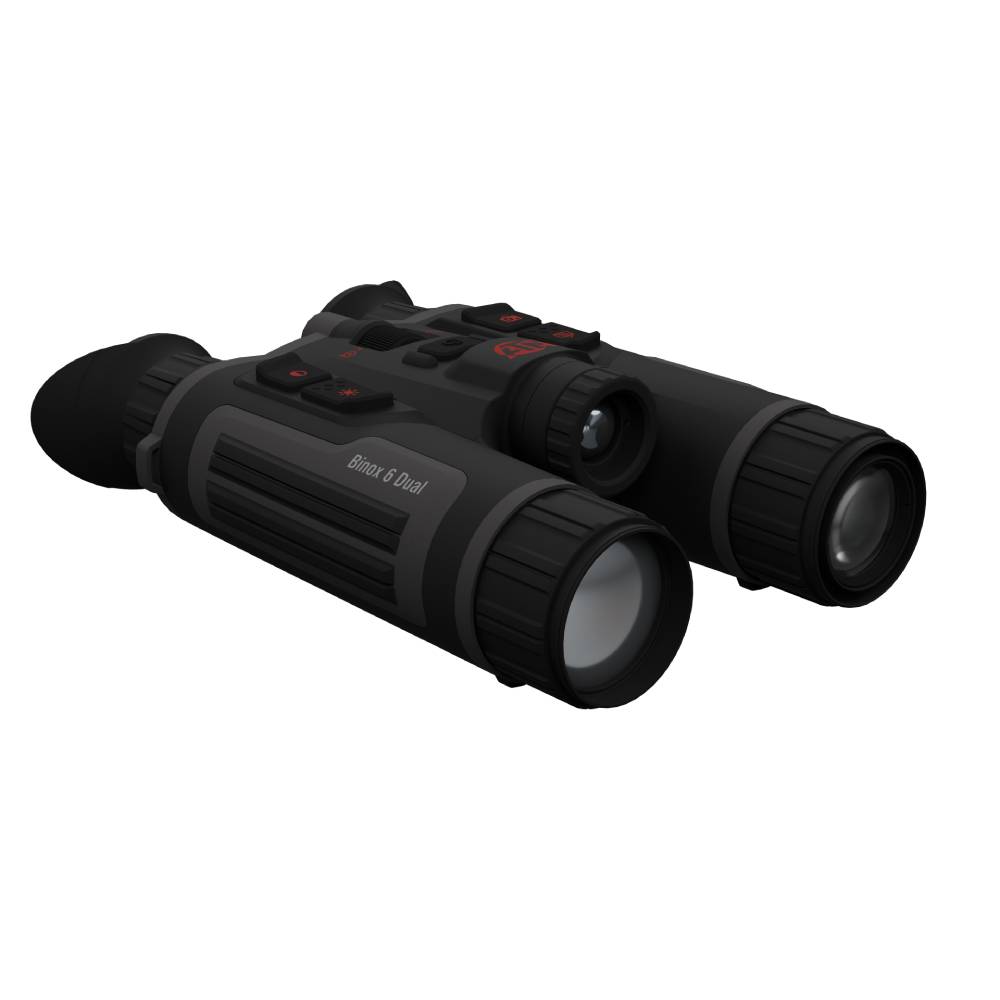

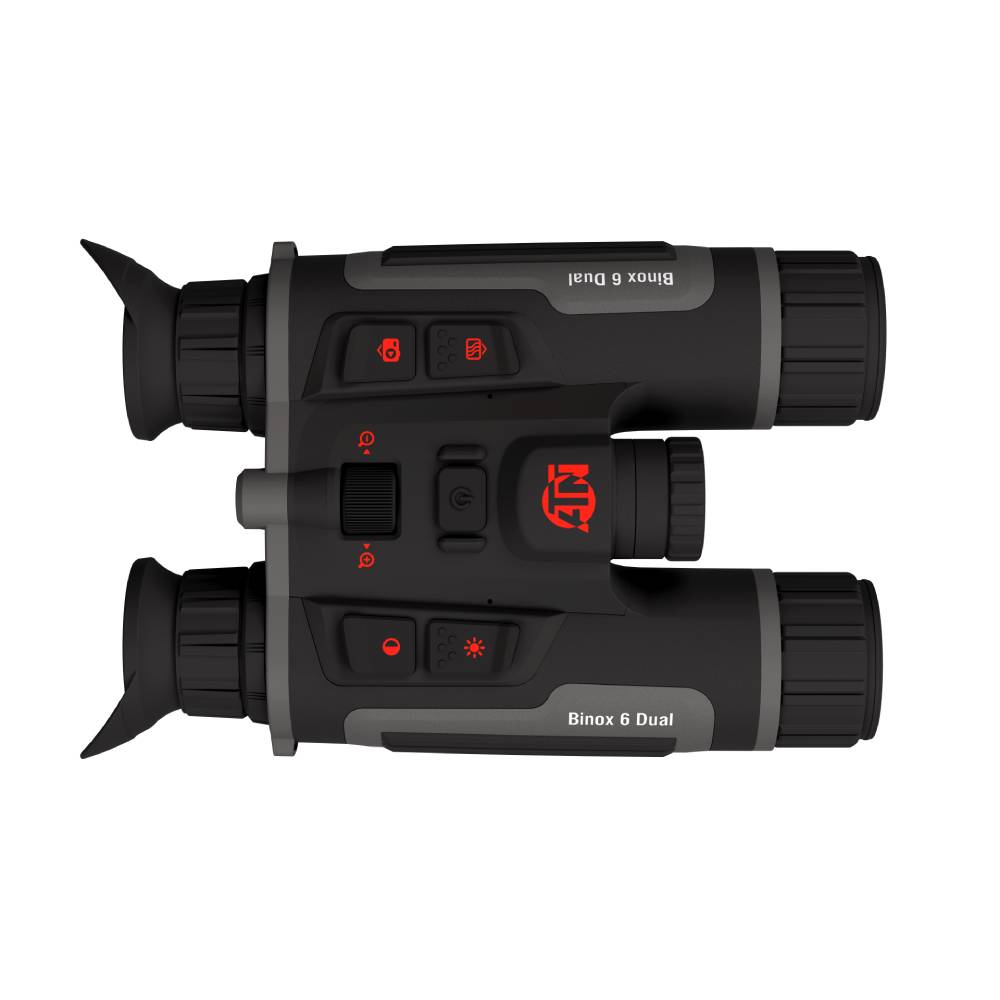

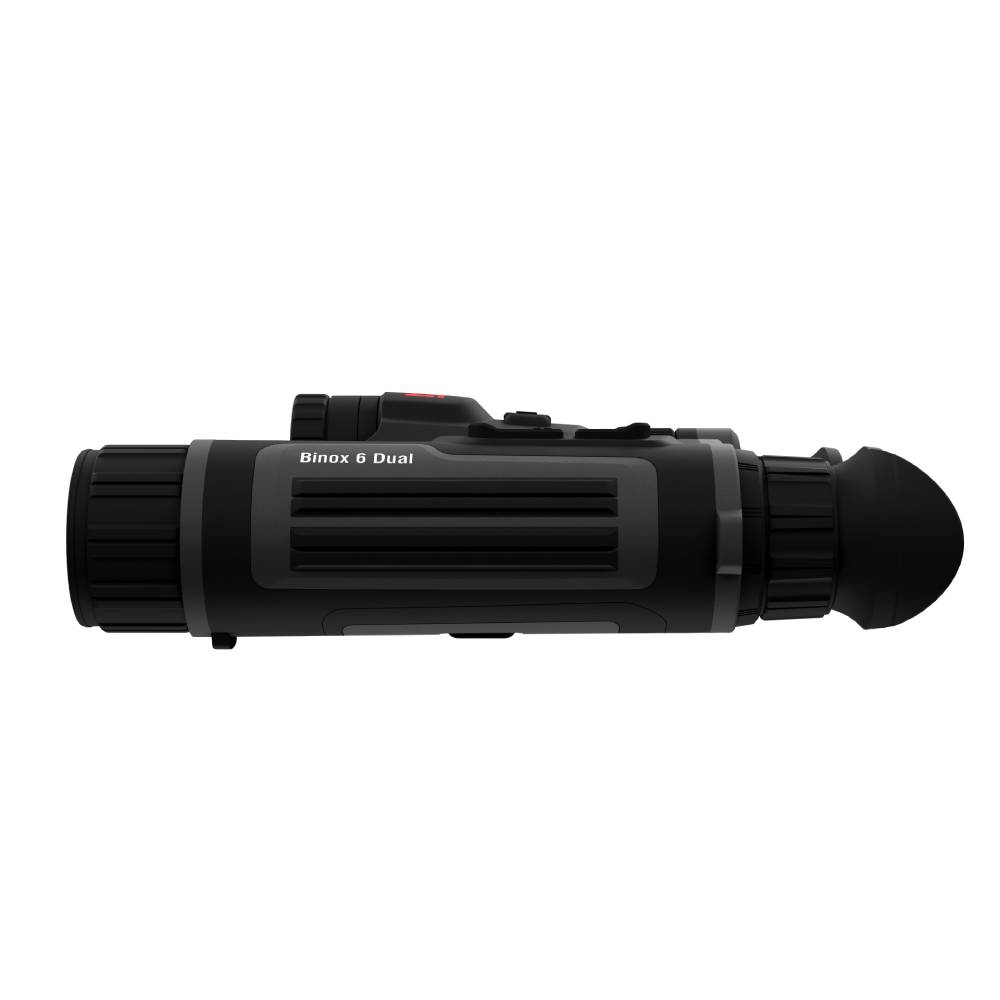

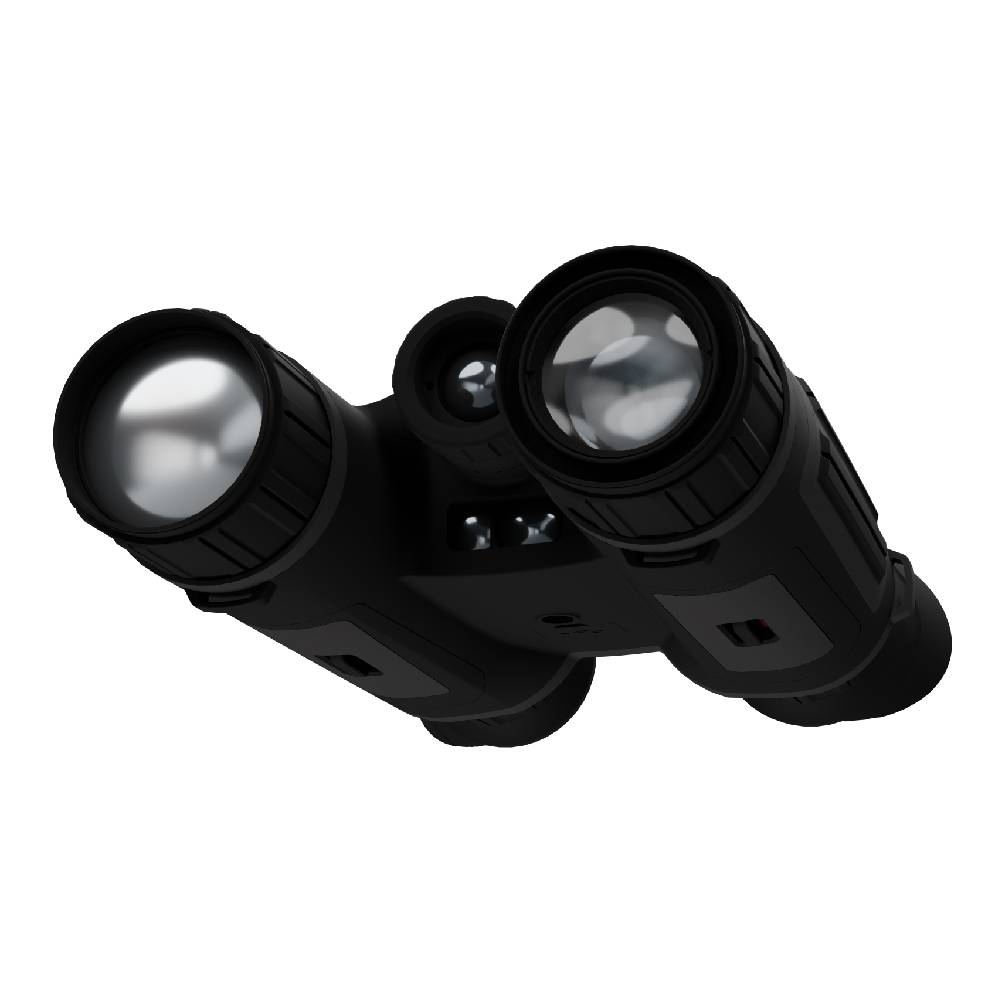

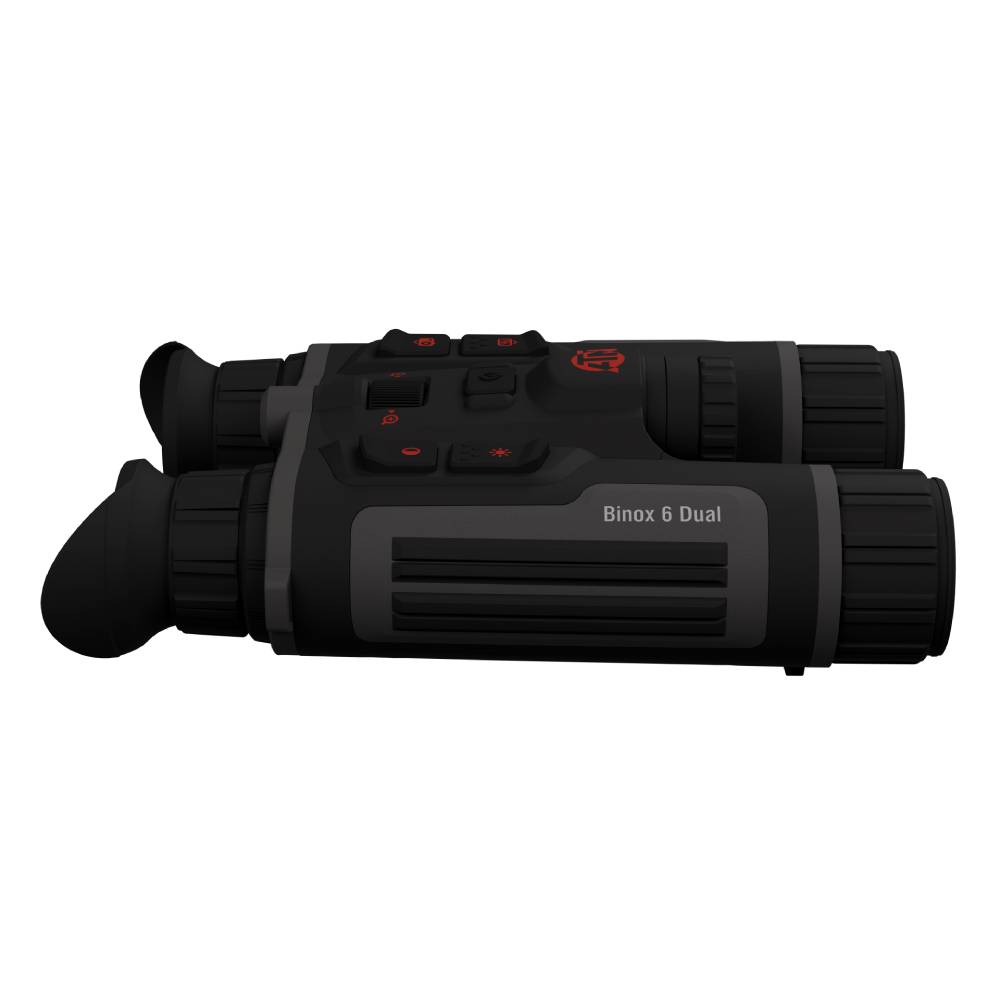

The ATN BinoX‑6 Dual 384 LRF (MSBNB6335A) is a 6th‑generation multispectral thermal binocular combining thermal imaging, digital day/night optics, and a built‑in laser rangefinder. It delivers long‑range detection up to 2,750 m with a 384×288 thermal sensor and 4K Ultra HD digital channel, making it ideal for scouting, wildlife observation, tactical surveillance, and search & rescue.
The ATN BinoX‑6 Dual 384 LRF is a dual‑spectrum smart binocular that integrates thermal imaging and digital optics into one device. It allows users to detect heat signatures in complete darkness or adverse weather, then switch instantly to digital optics for clear identification. The built‑in laser rangefinder (LRF) provides precise distance measurement, enhancing situational awareness.
Features
- Dual‑Spectrum Imaging: Combines thermal detection with digital day/night vision.
- Thermal Sensor: 384×288 resolution, 12 µm VOx uncooled focal plane array.
- Sensitivity: ≤15 mK NETD for detecting subtle heat differences.
- Detection Range: Up to 2,750 m (thermal).
- Digital Channel: 4K Ultra HD CMOS sensor for full‑color daytime viewing.
- Vision Modes: Day, Night (IR illuminator), Thermal, Twilight.
- Laser Rangefinder: Integrated, effective up to 1,000 m.
- Refresh Rate: Smooth 50 Hz thermal imaging.
- Recording: Video and photo capture with audio; Wi‑Fi streaming.
- Smart Features: Bluetooth, app connectivity, firmware updates.
- Battery Life: Long‑lasting rechargeable battery (approx. 15+ hours).
- Durability: Rugged design for outdoor and tactical use.
Package Includes
- Binox 6 Dual
- Portable Bag
- 2 x 18650 Batteries
- Data Cable
- Neck Strap
- Lens Cloth
- Quick Reference Guide
- Lens Caps
- Battery Charger
Specs
| Series | 384 LRF |
| Model | Binox 6 Dual |
| Color | Black |
| Resolution | 384x288 |
| Battery Size | Li-ion |
| Batteries Included | Yes |
| Battery Life | 8 hours |
| Battery Type | 2 × 18650 Rechargeable (Replaceable) |
| Battery Weight | 45g |
| Dimensions | 8.27L × 7.26W × 2.17H in |
| Diopter Adjustment | -5 to +5 D |
| Display | 0.49" OLED |
| Exit Pupil | 20 mm |
| Eye Relief | 15 mm |
| Field of View | 7.53° × 5.65° Thermal, 8.0° × 4.5° Day Lens |
| Waterproof Rating | IP67 |
| Interpupillary Distance | 60–74 mm |
| Lithium Battery Energy Content | 1.095g |
| Operating Temperature | -30 °C to +55 °C (-22 °F to 131 °F) |
| Power Supply | Supports External Power Via USB Type-C 5 VDC / 2 A |
| Thermal Sensitivity | ≤ 15 mK |
| Display Resolution | 1920×1080 |
